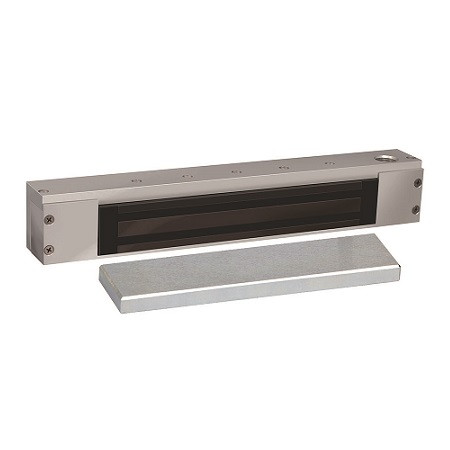

ZB171HD Dormakaba Dormakaba RCI 171HD Magnetic Lock with Z Bracket Inswing Assembly Kit
(No reviews yet)
Write a Review
Write a Review
Dormakaba
ZB171HD Dormakaba Dormakaba RCI 171HD Magnetic Lock with Z Bracket Inswing Assembly Kit
MSRP:
$2,809.00
$1,649.00
(You save
$1,160.00
)
- Brand
- Dormakaba
- SKU:
- ZB171HD
Features:
- Low projections from header. This will accommodate most door conditions without the need for filler plate or special bracket
- Low energy consumption; 0.26 amp @ 24VDC 0.50 amp @ 12VDC. 24VDC furnished as standard voltage. 12VDC available upon request
- 1200 lbs. holding force
- Door position switch (DPS) standard feature
- Built-in surge protection
- Easy installation and maintenance
- No pins, latches or moving parts to avoid failure that could impede safe egress in an emergency situation
- Satin anodized aluminum finish
Specifically designed for hazardous locations, the RCI 171HD magnetic lock is a UL Listed magnetic lock that meets the requirements for Class I, Division 2 applications.The 171HD offers continuous monitoring capability for open/close status or attempted unauthorized entry.
Specifications
- 14"W x 1-3/4"H x 2"D (355mm x 45mm x 51mm)
- Armature Plate: 10-3/4"W x 1-3/4"H x 5/8"D (273mm x 45mm x 16mm)
Electrical
- Current Draw - 0.50 AMPS @12VDC, 0.26 AMPS @ 24VDC
- Wire Color Code - Orange/Orange (12VDC), Red/Red (24VDC)
- Holding Force - 1200 LB (544 KG)
