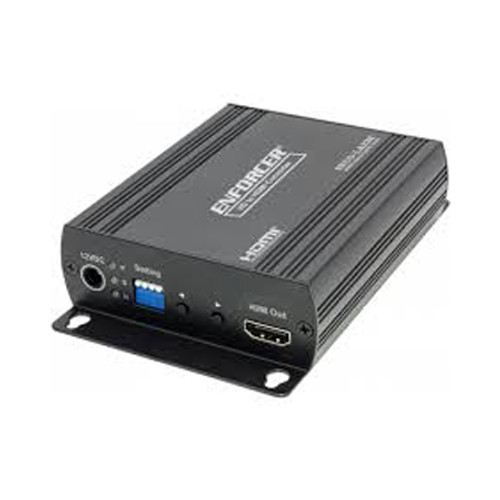

VC-3YAQ Seco Larm 4-in-1 HD to HDMI Converter

Features:

• Converts HD-TVI, HD-CVI, HD-AHD, or Analog/CVBS video to HDMI,VGA, CVBS, or loop output
• Secondary BNC connection supports CVBS conversion, loop output, or dual HD Analog video input
• Dual HD Analog video input mode (switch between multiple video inputs)
• Wall mountable with included screws
• Picture-in-picture mode when dual HD Analog video input used
• HDMI/VGA output support: 480p, 576p, 720p, 1080i, 1080p
• CVBS output support: NTSC, PAL
• CVBS underscan adjustment

The SECO-LARM 4-in-1 HD to HDMI Converter is the ideal way to transform HD-TVI, HD-CVI, HD-AHD, or traditional analog video inputs into an HDMI, VGA, or CVBS signal. The converter also allows for HD Analog video loop output, HD Analog dual video input, and picture-in-picture modes. The HD to HDMI Converter is compact and can be mounted nearly anywhere.

Specifications

• Input Signal - HD-TVI, HD-CVI, HD-AHD, NTSC, PAL
• Output Signal - HDMI, VGA, CVBS, loop output
• Input resolutions supported - 720p@25/30/50/60 Hz, 1080p@25/30 Hz, NTSC, PAL
• Output resolutions supported - HDMI/VGA - 480p, 576p, 720p@50/60 Hz, 1080i@50/60 Hz, 1080p@50/60 Hz, CVBS - NTSC/PAL
• Output connector - HDMI - Type A 19-pin female, VGA - D-SUB 15-pin female, BNC - 75Ω 1Vp-p
• Input connector - BNC (75Ω 1Vp-p)
• Maximum input cable length - HD-TVI, HD-CVI, HD-AHD: 984ft (300m); CVBS: 328ft (100m)
• Maximum output cable length - HDMI: 16ft (5m); VGA: 16ft (5m); CVBS: 328ft (100m)
• Power supply - 500mA@12VDC
• Power consumption - 350mA (max.)
• Operating Humidity - Up to 95%
• Operating Temperature - 32°~131° F (0°~55° C)
• Dimensions - 5-1/8"x3-7/16"x1-3/16" (130x88x30 mm)
• Weight - 9.7-oz (275g)
