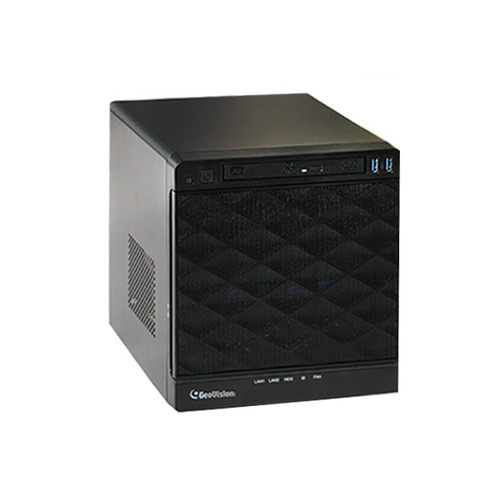

UVS-VMS-NC7C4-VMS18 Geovision UVS-CUBE VMS HotSwap System 32 Channel VMS i7 Intel Processor 16GB RAM 256GB SSD 32 Camera Maximum with GV-VMS V18 Software - No HDD

Features:

• Model Number: UVS-VMS-NC7C4-VMS18
• Manufacturer SKU Number: 94-NC7C4-VMS18
• Sales Part Number: 827-NCI74B-VMS18
• Powered by Intel Core i7 Processor
• Windows 10 Professional 64 bit
• Support for GPU Decoding
• Maximum storage capacity of up to 40 Terabytes
• Pre-installed recovery from the hidden partition
• 2 Gigabit LAN ports
• Dual monitor display (DP / HDMI)
• All-in-one solution (Live View, Playback, Recording, Backup, CMS)
• Video analysis (Advanced Motion Detection, Privacy Mask, Scene Change Detection and Counter)
• Fisheye camera dewarping function
• Automatic connection to GV IP cameras
• Dual video streams
• On-screen LED panel for HDD status
• Smart phones access
• Multiple (29) languages
• H.265 / H.264 / MJPEG / MPEG4

The UVS-CUBE VMS Hot-Swap 4-Bay System features the Intel Core i3 / i5 / i7 processor based on Coffee Lake 8th Generation architecture, latest upgraded VMS system and 64-bit Microsoft Windows 10. UVS-CUBE VMS HOTSWAP 4-Bay System supports up to 32 IP Camera channels. With additional license, connection with up to 32 channels of third-party IP devices is supported. You can also display your video surveillance in HD by using the built-in HDMI port on the system.

Specifications

System

• CPU - Intel Core i7 Processor
• RAM - Standard 16GB DDR4
• Server OS - Windows 10 Professional 64 Bit
• Power Supply - 265W
• Data HDD Included 0
• Max # of HDD - 56TB
• Removable HDD - Yes
• Hot-swappable HDD - Yes
• Video Codec - MPEG4, MJPEG, H.265, H.264
• Video Input - 32
• Video Resolution - Panel Resolution Up to 4K
• Backup Type - DVD+R (DL), DVD-R (DL), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-R, CD-RW
• Recovery Option - Hidden Partion System Restore
• Connector - Ethernet: 2 x RJ-45, 10/100/1000 Mbps, VGA Output: Dual Monitor Output DP and HDMI, USB 3.1: 2 Front, 4 Rear
• Remote Access - TCP/IP, Lan, Wan, Internet, Modem to Modem, ISDN
• Operating Temperature - 0 to 45 °C (32 to 133 °F)
• Humidity - 0 to 80% RH (non condensing)
• Power Supply - 265 W
• Dimensions (W x D x H) - 7.50" x 7.75" x 10"
• Weight Approximate (lbs) - 10 without HDDs
• Optional Products - GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box/ GV-DOM / GV-Joystick / GV-Remote / GV - Keyboard
• Languages - English/ Spanish

UVS-VMS-NC7C4-VMS18 Datasheet
