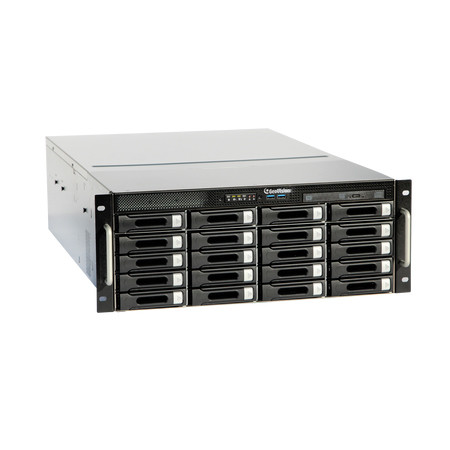

UVS-RS-i708A-048 Geovision GV-Hot Swap 64 Channel Recording Server System V5 Intel Core i7 Processor 16GB Dual Channel RAM 128 GB SSD 48 Camera Maximum - No HDD

Features:

• Model Number:UVS-RS-i708A-048
• Manufacturer Part Number:94-RS08A-048
• Sales Part Number:850-RSi78B-048
• Windows Embedded 7 64-bit (x64)
• Powered by Intel Core i7 Processor
• 16 / 8 hot-swappable SATA drive bays for data storage
• Maximum storage capacity of more than 60 TB (4U 20-Bay) / 48 TB (3U 16-Bay) / 24 TB (3U 8-Bay)
• Simultaneous receiving and recording up to 128 IP channels

The GV-Hot Swap Recording Server System is a video streaming server supported by a powerful data storage capacity and designed for large-scale video surveillance deployments. It comes with a selection of 4U (20-bay) or 3U (16 / 8-bay) and hot-swappable SATA mobile racks. Depending on the HDD size, the GV-Hot Swap Recording Server System can store more than 60 terabytes of recorded data.The built-in GV-Recording Server can receive and record up to 128 channels from various IP video devices. In addition, it can simultaneously distribute up to 300 channels to its clients which include GV-System (DVR/NVR system), GV-Control Center (central monitoring system) and Multi View (viewing software). Using the GV-Recording Server, the desired frame rates can be reached while the CPU loading and the bandwidth usage of IP video devices are significantly reduced.

Specification

System

• CPU - Intel Core i7 Processor
• RAM - 16 GB Dual Channels
• OS - 64-bit Microsoft Windows 7 Embedded
• DirectX - 11
• No. of HDD - 20 (3.5" HDD)
• Internal Storage - 500 GB (3.5" HDD)
• Connector
  • Ethernet - RJ-45, 10 / 100 / 1000 Mbps x 3
  • Video Output - 3 displays with outputs VGA, DVI-D (DVI-D signal Only) and HDMI
  • USB 2.0 - Front : 2 ports, Rear : 2 ports
  • USB 3.0 - Rear: 2 ports
• DVD (±) RW
  • Slim - 8X
• Fan
  • 12 cm (4 3/4") - 3 units
  • 8 cm (3 1/8") - 2 units
  • Power - Output: 900 W Input: 90-264 V, 47-63 Hz
  • Backup Type - DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW

System Monitoring and Recovery

• Power Restoration - Automatic restart after power outage
• Monitoring - Two independent Watchdogs (Hardware Watchdog + Software Watchdog)
• Recovery DVD - Automatic system rebuild from DVD

Environment

• Operating Temp. - 0 ~ 45 °C (32 ~113 °F)
• Humidity - 0 ~ 80% RH (non-condensing)

Physical

• LED Indicator - Yes (Fan, Power, HDD)
• Color - Black
• Dimensions (W x H x D) - 483 x 178 x 660.4 (mm) / 19 x 7 x 26 (in)
• Weight - 23.5 kg / 51.8 lb (± 1 kg / 2.2 lb)

Software Specifications

• Number of IP Video Device Connections - 128 channels
• Number of Remote Client Connections - 300 channels
• Active Connections - Yes
• Passive Connections - Yes (only for GV-IP devices)
• 3rd Party IP Cameras Support - Yes
• Live Viewing - Single live view, multi-channe live view
• Recording - Yes (up to 128 channels)
• Protocol - HTTP, HTTPS, TCP, UDP, SMTP, UPnP, DynDNS, RTSP, PSIA, ONVIF
• E-Mail Notification - Yes (for Active connection lost, passive connection lost, USB protection key removed, recycling of recorded video, start keep days operation, motion detection, disk full, disk error, I/O trigger, disk removed, recording failure)
• SMS Notification - No
• 2-Way Audio - Yes (only for GV-IP devices through active connection)
• GPS support - Yes (only for GV-IP cameras)
• Number of Accounts - Up to 1000 accounts
• Mobile Phone Support - No
• Bandwidth Control - No
• IE Live View - Yes (up to 36 channels)
• IE Event Query - Yes
• IE I/O Control - No
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Italian / Japanese / Lithuanian / Norwegian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Software License

• Free License - N/A
• Maximum License - 128 channels
• Increment for Each License
  • 1. GV-IP video devices only : 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 124, 128 IP channels.
  • 2. Third-party IP devices (Includes GV-IP video devices) : 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 124, 128 IP channels.
  Optional Combinations - N/A
• Dongle Type - Internal
