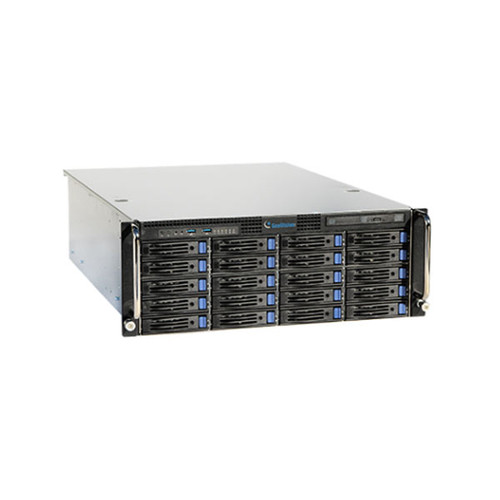

UVS-NVR-i9U20-64A Geovision UVS-Ultra NVR HotSwap System 20-Bay 64 Channel 4U NVR Intel i9 16GB RAM 256 GB SSD 64 Camera Maximum with GV-NVR Software - No HDD

Features:

• Model Number: UVS-NVR-i9U20-64A
• Manufacturer SKU Number: 94-NU920-64A
• Sales Part Number: 837-NUi920-064
• Intel i9
• Windows 10 Pro 64bit
• Support GPU Decoding
• Supports up to 64-channels GV-VMS (pure IP surveillance)
• Dual monitor display
• Maximum storage capacity of more than 40 terabytes
• Hot-swap status LED panel
• Dual Gigabit LAN ports
• 4U (20 / 8-bay) hot-swap SATA HDDs for data storage
• Built-in 4 inputs and 4 outputs
• Extreme performance for GV-DVR and GV-NVR operation
• Recovery DVD in case of failure
• RAID 0 / 1 / 5 / 6 data protection (optional)
• Compatible with full selections of GeoVision accessories

Specifications

• CPU - Intel i9 Skylake
• Memory (RAM) -16 GB DDR4
• Hot Swap Bays -20
• Video
  • Codec - MPEG4, MJPEG, H.264
  • Channels - 64
• Video Resolution -2560×1920 (5M), 2560×1600 (4M), 2048×1536 (3M), 1600×1200 (2M), 1280×960 (1.3M), 640×480 (VGA), 320×240 (CIF)
• Backup Type -DVD±R, DVD±RW, CD-R/RW
• Recovery DVD -Automatic System Rebuild
• Alarm Inputs
  • Sensor Input4*
  • Alarm Outpdut4*
• Connector
  • Ethernet -2 x RJ-45, 10/100/1000 Mbps
  • VGA Output -2 (DVI, VGA, or HDMI)
  • USB 2.0 (F + R) -2 Front + 4 Rear
  • USB 3.0 -2 Rear
• Remote Access - TCP/IP, LAN, WAN, Internet, ISDN
• Operating Temperature - 0 to 45 °C (32 to 133 °F)
• Humidity -0 to 80% RH (non condensing)
• Dimensions (W x D x H) - 19 x 26 x 7 inch
• Raid (optional) -0, 1, 5, 6
• Optional Products -GV-IO 12-In Card / GV-IO 12-Out Card / GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box/ GV-DOM / GV-Joystick / GV-Remote / GV – Keyboard
• Languages -English/ Spanish
