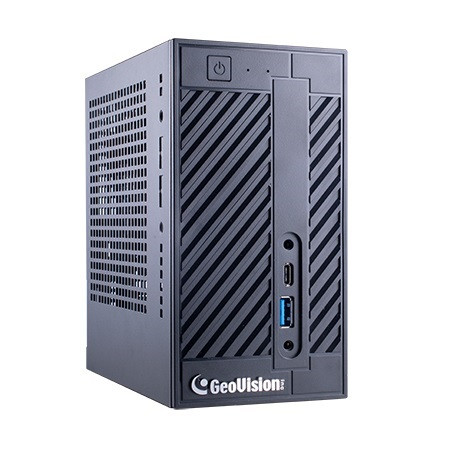

UVS-NRLT256-0000 Geovision UVS Remote GV-Mini Server i3 8GB RAM - No HDD

Features:

• Model Number: UVS-NRLT256-0000
• Manufacturer SKU Number: 94-NRLT256-0000
• MIni PC with Intel Mini-STX form Factor
• Powerful desktop CPU : Intel Core i3/i5/i7
• 64-bit Windows 10 IoT Enterprise
• Support for GPU Decoding
• 3 graphics outputs, HDMI, DP, VGA, to support up to 2 monitors simultaneously
• Pre-installed SSD for recovery
• Mini size (155 x 155 x 80 mm / 6.11 x 6.11 x 3.15 in)
• VESA mount (optional)

Equipped with Intel Mini-STX motherboard form factor, GV-Mini System is a mini PC but has the advantage of using a regular desktop CPU. GV-Mini System is available in 3 types of CPU Cores (i3, i5 and i7) and comes with 3 graphics outputs (HDMI, DP and VGA) to support up to 2 monitors simultaneously. Its high-performance processor makes it possible to run GeoVision software, and the mini size gives the possibility for VESA mounting on the rear of a monitor.

Specifications

System

• CPU - Intel Core i3
• OS - 64-bit Windows 10 IoT Enterprise
• Memory - 8 GB DDR4 2400 MHz (4 GB x 2)
• Graphics - Intel HD Graphics
• Audio - Realtek Audio
• LAN - Intel Gigabit LAN
• OS SSD - GV-FR Server/GV-Smart Retail: 256 GB MLC SSD, GV-NVR/GV-VMS/GV-ASManager: 64 GB MLC SSD
• Internal Storage Interface - GV-FR Server/GV-Smart Retail: 2.5” HDD/SSD x 1, GV-NVR/GV-VMS/GV-ASManager: 2.5” HDD/SSD x 2
• Front I/O - Power Button, Power LED and HDD LED, USB 3.1 Gen 1 (Type-A), USB 3.1 Gen 1 (Type-C)
• Rear I/O - VGA, HDMI, DisplayPort, USB 3.1 Gen 1 (Type-A), USB 2.0, LAN, DC Jack, COM port
• Power - 19V, 20W Power Adapter

Environment

• Operating Temp - 0 ~ 35 °C / 32 ~ 95 °F

Physical

• Color - Black
• Dimensions (W x H x D) - 155 x 155 x 80 mm / 6.11 x 6.11 x 3.15 in
• Net Weight - 1.92 kg / 4.23 lb

UVS-NRLT256-0000 Specifications PDF
