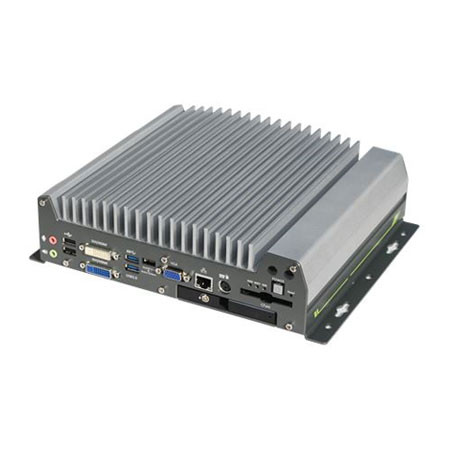

UVS-NPM01-16 Geovision UVS Mobile NVR 16 Channel Intel i5 16GB RAM 256 SSD - No HDD

Features:

• Model Number: UVS-NPM01-16
• Manufacturer Part Number: 94-NPM01-16A
• Sales Part Number: 815-NPM01-016
• Powered by Intel i5 4th. Generation Haswell Processor
• Windows 10 Pro 64 Bit Embedded
• GPU Decoding
• 1 Hot Swappable 2.5 in. HDD / SSD bay for up to 2 Terabyte
• Fanless System
• Vibration and Mechanical Shock Protection (5G(RMS) at 5 ~ 500 Hz for SSD)
• Power Ignition Management (ACC)
• Wide Operating Temperature (0°C ~ 70°C / 32°F ~ 158°F for SSD)

Specifications

System

• CPU - Intel i5 4th. Generation Haswell Processor
• RAM - 16 GB DDR3 Dual Channel
• OS - Windows 10 Pro 64 Bit Embedded
• No. of Drive Bay - 1 (2.5" HDD / SSD)
• Internal Storage -256 SSD
• Ethernet - 3 x RJ-45, 10 / 100 / 1000 Mbps
• Video Output - 2 ( VGA, 2 x DVI-D )
• USB 2.0 - Front: 2 ports
• USB 3.0 - Front: 2 ports
• Power - DC 10 ~ 25V (ACC, Vehicle Ignition)
• Power Adapter - Input: AC 100 ~ 240V, 50 - 60 Hz, Output: DC 12V, 5A ( 102 W. Max )
• Fan - N/A

Environment

• Operating Temp. - SSD: 0°C ~ 70°C (32°F f ~ 158°F)
• Humidity - 10 ~ 90% RH (non-condensing)

Physical

• Color - Silver
• LED Indicator - 4 (HDD, WWAN, Power and WLAN)
• Dimensions (W x H x D) - 9.5 x 3.5 x 9”
• Net Weight - 15 lb
• Operating Shock - 50G(RMS) - Half-Sine 11 ms Duration
• Operating Vibration - 5G(RMS) @ 5 ~ 500 Hz (SSD)

Sensor and Alarm

• Inputs - 4 / 8 / 16 ports (optional GV-I/O Box required)
• Outputs - 4 / 8 / 16 ports (optional GV-I/O Box required)

Video and Audio

• Video Standard - NTSC, PAL
• Video Codec - MJPEG / MPEG4 / H.264
• Audio Codec - 32 kHz / 16 bit

Live View and Playback

• Image Control - Contrast / Brightness / Saturation / Hue
• Recording Mode - Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording / Schedule Recording
• Pre Recording - 1 ~ 45 min.
• Instant Playback - 10 sec. / 30 sec. / 1 min. / 5 min.
• Watermark - Supported

Searching and Playback

• Search Method - Date / Time / Camera / Event type
• Backup Type - DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW Note: For backup function, you need to connect an external USB DVD/CD burner

Remote Monitoring

• Monitoring Environment - Web browser (IE, Chrome, Firefox and Safari) Mobile device (iOS and Android)
• Live View - Max. 24-channel multi views
• Network Type - LAN, WAN, Internet

System Monitoring and Recovery

• Power Restoration - Automatic restart after power outage
• Monitoring - Software watchdog
• Recovery - Automatic system rebuild from internal hard disk

Certification

• Type - CE, FCC

Language

• Type - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finland / French / German / Greek / Hebrew / Hungarian / Italian / Japanese / Lithuanian / Norwegian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Sweden / Thai / Traditional Chinese / Turkish

Software License

• Free License - Up to 16 channels for Geovision IP Cameras
• Optional 3rd Party Camera License - 1 to 16 third-party IP Cameras at an increment of 2
• Dongle Type - External
