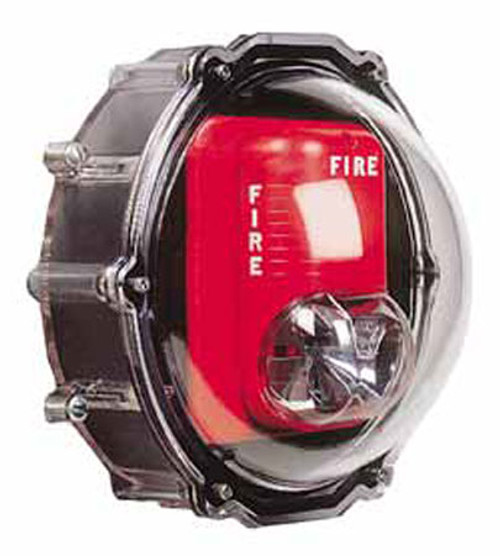

STI-1229-HAZ STI Stopper Dome for Strobe Only with Enclosed Backbox - NEMA 4X Hazardous Locations

This virtually indestructible cover is designed to help stop vandalism and accidental damage to strobe units. The weatherproof cover is rated NEMA 4, NEMA 4X and UL, cUL Hazardous Listed and molded of clear, thick, UV-stabilized polycarbonate material to provide maximum protection in harsh conditions. STI-1229-HAZ includes an enclosed backbox and incorporates a double gang appliance mounting plate that eliminates the need for an electrical outlet box. Stopper Dome carries a lifetime guarantee against breakage of the polycarbonate in normal use.

Specifications:

• Model Number STI-1229-HAZ
• UL Listed to U.S. and Canadian safety standards.
• Helps prevent accidental and intentional damage or vandalism.
• Easy access for service.
• Cover is UV-stabilized.
• Rated for indoor and outdoor locations.
• Enclosed backbox.
• NEMA 4X Rated. Dust tight (Class II Group F and G Div. 2). All Class III locations.
• Includes double gang appliance plate which eliminates the need for an electrical outlet box
• CSFM letter available authorizing local AHJ's ability to grant permission for use.
• Typical working properties of polycarbonate are -40° to 250°F (-40° to 121°C).
• Ambient rating 32ºF to 120ºF (0ºC to 49ºC) indoors or outdoors.
• Lifetime guarantee against breakage of polycarbonate in normal use.

Light Derating Factor

• 37% - Amseco - SL24W - 153075
• 37% - Detection Systems - GES24 Series
• 33% - Faraday - 2700 Series
• 37% - Gentex - GES24 Series (may be followed by a "W", "R" or "P")
• 37% - Harrington Signal - GES24 Series
• 37% - Secutron - GES24 Series
• 33% - Siemens - U-MCS Series
• 36% - System Sensor - SS24110ADA
