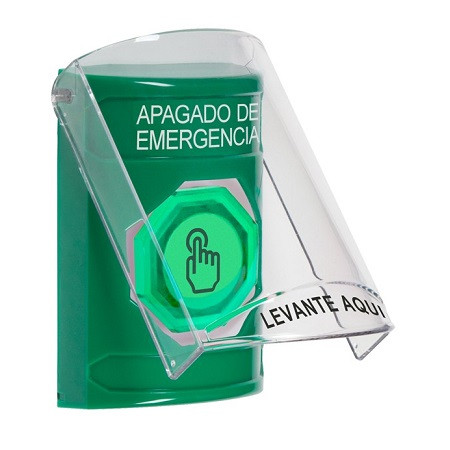

SS21A6PO-ES STI Green Indoor Only Flush or Surface w/ Horn Momentary (Illuminated) with Green Lens Stopper Station with EMERGENCY POWER OFF Label Spanish

Features:

• Color Option : Green
• Cover Option : Indoor Only Flush or Surface w/Horn
• Switch Configuration Option : Momentary (Illuminated) with Green Lens
• Label Text Option : EMERGENCY POWER OFF
• Label Language Option : Spanish
• Multipurpose push button switches cover a wide range of applications both indoors and outdoors
• Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components)
• Unique, curved design helps protect against accidental activation
• Station housing molded of tough polycarbonate
• Models used with LT-1UL Latching Timer Module are Listed for access control
• Stainless steel backplate
• 5VA flammability rating on backplate and spacer
• Typical working properties of polycarbonate are -40°F to 250°F (-40°C to 121°C)
• Polycarbonate complies with FDA regulations for food contact applications

These multipurpose push button switches cover a wide range of applications both indoors and outdoors. They're called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.

Specifications

• Two (2) Form "C" contacts, DPDT, rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC
• 12-24VAC/VDC LED
• 100,000 operations
• Contact Depth : .875"
