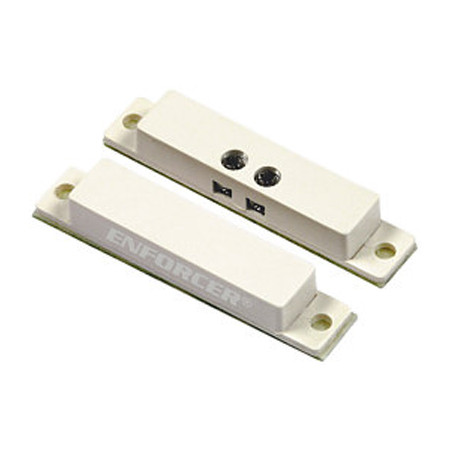

SM-431-TQ-B Seco-Larm Surface-Mount N.C. Magnetic Contact with Quick-Connect Terminal Block

Features:

• Miniature surface-mount magnetic contacts
• Screw mount using side tabs or break off tabs for adhesive mount
• Gold-plated screw terminals for longer life and reliability
• Tape to cover screw terminals included
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life
• 1″ (25mm) Gap
• For N.C. circuits
• Mounting screws and double-sided tape included

Specifications

• Circuit type - N.C.
• Terminals - Gold-plated
• Color - Brown
• Mounting tabs - Yes/removable
• Material
  • Case - High-impact ABS plastic
  • Terminals - Gold-plated
• Contacts - Iridium-plated
• Contact rating
  • 0.1A@100VDC (max)
  • 1.0A@10VDC (max)
  • 10W (max)
• Temperature - -68°~158°F (-20°~70°C)
• Switch cycles - 50 Million (0.1mA@5VDC)
• Switch dimensions - 2"x3/8"x1/4" (51x10x6mm)
• Magnet dimensions - 2"x3/8"x1/4" (51x10x6mm)
• Magnet type - Rare-earth neodymium

SM-431-TQ-B-10 Datasheet
