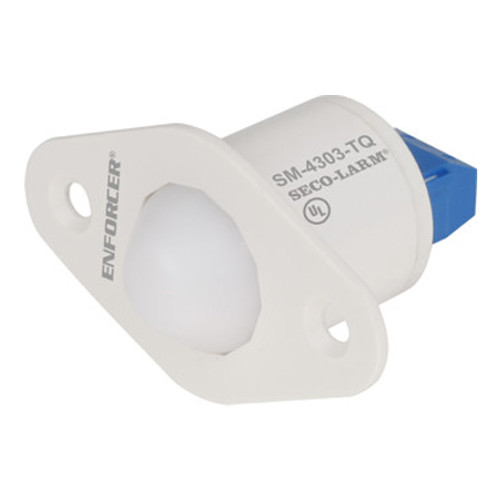

SM-4303-TQ-W Seco-Larm Roller-Ball Recessed-Mount N.C Magnetic Contact with Quick-Connect Terminals
$2.90
- Brand
- Seco-Larm
- SKU:
- SM-4303-TQ-W
Features:
- Used for protecting sliding doors and windows where space is limited.
- Magnet and reed switch contained in housing.
- Spacer and screws included.
- Rollerball plunger travel is 1/4" (6mm).
- 360º Roller-ball.
- Screw terminals.
- Contact reed switch is SPST, ruthenium on gold under plating, which results in a long life.
- For N.C. circuits.
Specifications
- Circuit type - N.C.
- Switch type - Plunger
- Switch travel - 1/4" (6mm)
- Color - White
- Material - High-impact ABS plastic
- Contacts - Ruthenium on gold underplating
- Contact rating
- 0.1A@100VDC (max)
- 1.0A@10VDC (max)
- 10W (max)
- Temperature - -68º~158º F (-20º~70º C)
- Switch cycles - 50 Million (0.1mA@5VDC)
- Switch dimensions - 25/32"x3/4"x1/4" (19.8x19x6.35mm
- Magnet - Rubber
