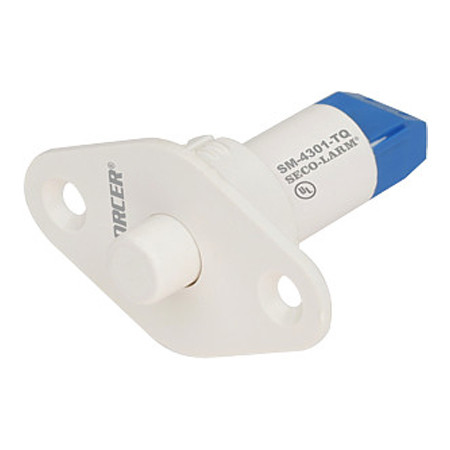

SM-4301-TQ-W Seco-Larm Plunger-Type Recessed-Mount N.C Magnetic Contact with Quick-Connect Terminals

Features:

• Used for protecting sliding doors and windows where space is limited.
• Magnet and reed switch contained in housing.
• Spacer and screws included..
• Plunger travel is 1/4" (6mm).
• Screw terminals.
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life.
• For N.C. circuits.
• Lifetime limited warranty.

Specifications

• Circuit type - N.C.
• Switch type - Plunger
• Switch travel - 1/4" (6mm)
• Color - White
• Material - High-impact ABS plastic
• Contacts - Iridium-plated
• Contact rating
  • 0.1A@100VDC (max)
  • 1.0A@10VDC (max)
  • 10W (max)
• Temperature - -68º~158º F (-20º~70º C)
• Switch cycles - 50 Million (0.1mA@5VDC)
• Switch dimensions - 1-5/32"x3/4"x1/4" (37x19x6mm
• Magnet - Rare-earth neodymium
