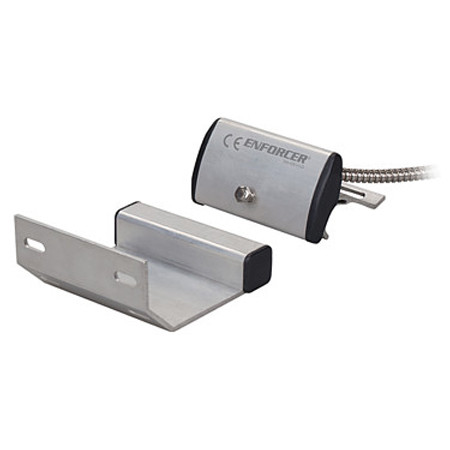

SM-4201-LQ Seco-Larm Track-Mount N.C Overhead Magnetic Door Contact

Features:

• Used for overhead doors in both industrial and residential situations where a wide gap is present
• Adjustable to fit most door-channel widths
• Rugged aluminum housing
• 36″ (91cm) wire leads enclosed in armored cable
• Contact Type: SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life
• For N.C. Circuits
• 3″ (76mm) Gap
• Mounting bracket included

Specifications

• Circuit type - N.C.
• Operation gap - 3” (76mm)
• Material
  • Case - Aluminum
  • Terminal - 36" (91cm) armored leads
• Contacts - Iridium-plated
• Contact rating
  • 0.1A@100VDC (max)
  • 1.0A@10VDC (max)
  • 10W (max)
• Temperature - -68° ~ 158° F (-20° ~ 70° C)
• Switch cycles - 50 Million (0.1mA@5VDC)
• Switch dimensions - 37/64"x219/32"x113/16" (79x66x46mm)
• Magnet dimensions - 37/32"x317/32"x13/4" (82x90x44mm)
• Magnet - Ferrite
