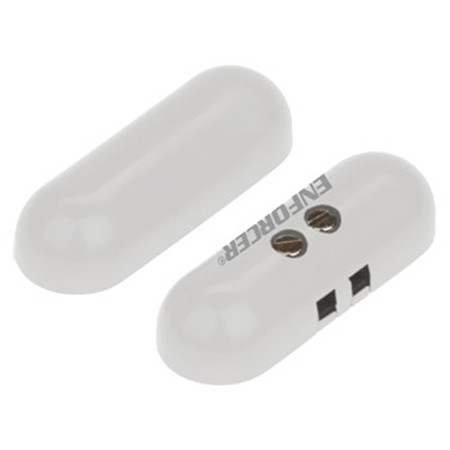

SM-4004-TQ-W Seco-Larm Capsule-Type Surface-Mount N.C Magnetic Contact with Quick-Connect Terminal

Features:

• Miniature capsule-type surface-mount magnetic contacts
• Gold-plated external screw terminals for longer life and reliability with tape to cover terminals (SM-4004-TQ only)
• 18″ Wire leads (SM-4004-LQ only)
• Adhesive mounting (double sided tape included)
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life (SM-4004-TQ), or ruthenium on gold under plating, which results in a long life (SM-4004-LQ)
• 1″ (25mm) Gap (SM-4004-TQ)
• 3/4″ (19mm) Gap (SM-4004-LQ)
• For N.C. circuits

Specifications

• Circuit type - N.C.
• Operation Gap - 1" (25mm)
• Terminals - Gold-plated quick- connect
• Color - White
• Material - High-impact ABS plastic
• Contacts - Iridium plating
• Contact rating
  • 0.1A@100VDC (max)
  • 1.0A@10VDC (max)
  • 10W (max)
• Temperature - -68°~158°F (-20°~70°C)
• Switch cycles - 50 Million (0.1mA@5VDC)
• Switch dimensions - 1"x3/8"x1/4" (25x10x7mm)
• Magnet dimensions - 1"x3/8"x1/4" (25x10x7mm)
• Magnet type - Rare-earth neodymium

SM-4004-TQ-W-10 Datasheet
