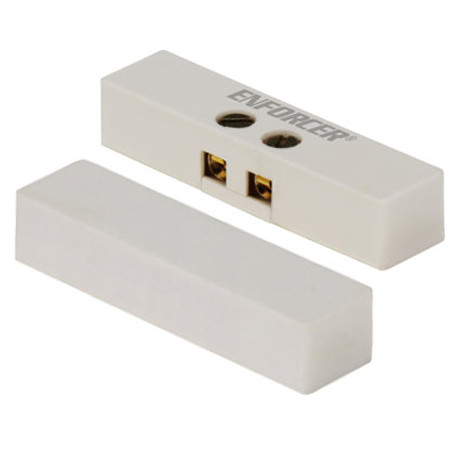

SM-4003-TQ/W Seco-Larm Surface-Mount N.C. Magnetic Contact with Quick-Connect Terminal Block
(No reviews yet)
Write a Review
Write a Review
Seco-Larm
SM-4003-TQ/W Seco-Larm Surface-Mount N.C. Magnetic Contact with Quick-Connect Terminal Block
$3.60
- Brand
- Seco-Larm
- SKU:
- SM-4003-TQ/W
Features:
- Miniature surface-mount magnetic contacts
- Gold-plated terminals for longer life and reliability
- Screw terminals
- Tape to cover screw terminals included
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life
- 1″ (25mm) Gap
- For N.C. circuits
- Mounting tape included
Specifications
- Terminals - Gold-plated
- Color - White
- Mount - Adhesive
- Material
- Case - High-impact ABS plastic
- Terminal - Gold-plated
- Contacts - Iridium-plated
- Contact rating
- 0.1A@100VDC (max)
- 1.0A@10VDC (max)
- 10W (max)
- Temperature - -68~158F (-20~70C)
- Switch cycles - 50 Million (0.1mA@5VDC)
- Switch dimensions - 1″x3/8″x19/64″ (38x10x7.4mm)
- Magnet dimensions - 1″x3/8″ x9/32″ (38x10x6.9mm)
- Magnet type - Rare-earth neodymium
