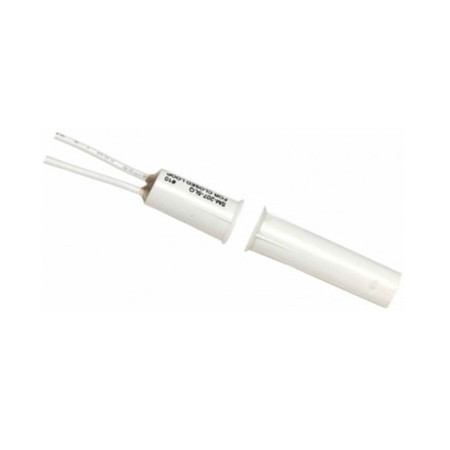

SM-207-5LQ/W Seco Larm 3/8" Concealed-Mount Contacts Wide Gap Stubby - White

Features:

• Used for protecting sliding doors and windows where space is limited
• 3/8" Press-fit mount
• 15" (38cm) wire leads
• Contact reed switch is SPST, deactivated rhodium on gold under-p lating for a longer expected life
• Unique glue/epoxy compound protects reed switch
• For closed loop circuits
• 1" (25mm) Gap
• Lifetime limited warranty

Specifications

• Loop Type - Closed loop
• Electrical Configuration - N/O
• Operation Gap - 1", (25mm)
• Color - White
• Material - Case - High-impact ABS plastic / epoxy compound
• Material - Contact - Deactivated rhodium on gold under-plating
• Contact Rating - 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
• Operating Temperature - -15™~+160™ F (-25™~70™ C)
• Switch Cycles - 50 Million (0.1mA@5VDC)
• Switch Dimensions - 3/4" x 7/16" x 3/8" (19 x 11 x 9 mm)
• Magnet Dimensions - 1-3/8" x 7/16" x 3/8" (35 x 11 x 9 mm)
• Magnet Type - Alnico 5

SM-207-5LQ/W-10 Datasheet
