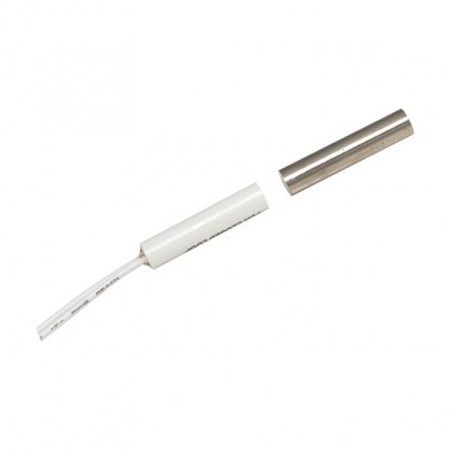

SM-206Q/W Seco Larm Concealed-Mount Magnetic Contact

Features:

• Used for protecting sliding doors and windows where space is limited
• 1/4 " Press-fit mount
• 15" (38cm) wire leads
• Contact reed switch is SPST, deactivated rhodium on gold under-plating for a longer expected life
• Unique glue/epoxy compound protects reed switch
• For closed loop circuits
• 1" (25mm) Gap
• Lifetime limited warranty

Specifications

• Loop Type - Closed loop
• Electrical Configuration - N/O
• Operation Gap - 1", (25mm)
• Color - White
• Leads - Pre-wired 15", #22
• Material - Case - High-impact ABS plastic / epoxy compound
• Contacts - Deactivated rhodium on gold under-plating
• Contact Rating - 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
• Operating Temperature - -15°~+160° F (-25°~70° C)
• Switch Cycles - 50 Million (0.1mA@5VDC)
• Switch Dimensions - 1-7/32" x 1/4" (31 x 6.35 mm)
• Magnet Dimensions - 1-1/4" x 1/4" (32 x 6.35 mm)
• Magnet Type - Alnico 5

SM-206Q/W-10 Datasheet
