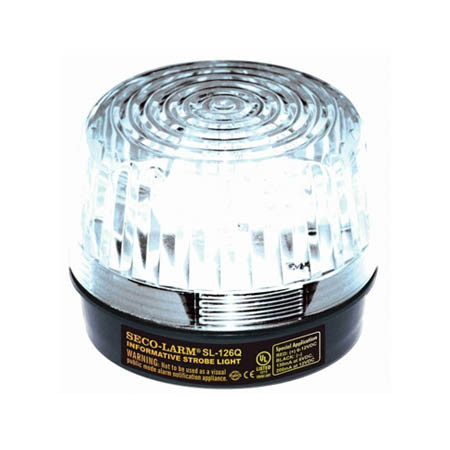

SL-126Q/C Seco-Larm Clear Strobe Light 6-12VDC

Features:

• For "informative" general signaling requirements.
• Incorrect polarity cannot damage circuit or draw current.
• Easy 2-wire installation, regardless of voltage. Also, if the strobe light is being powered by a battery, as the battery is drained the strobe light will continue to function.
• Low current consumption with long operating lifespan of over 300 continuous hours (2,000,000 flashes).
• Includes choice of amber, blue, clear, or red lens.
• Lens is made of high-impact resistant acrylic, case of high-impact resistant ABS plastic.
• The SECO-LARM strobe light comes with a protective inner cover. This protects the high-voltage xenon tube when the colored lens has been removed.
• Use in temperature ranging from -22™F (-30™C) to 140™F (60™C).

Specifications:

• Model Number - SL-126Q/C
• Color - Clear
• Voltage - 12VDC
• Circuits - All solid-state
• Input Connections - Red/Positive Black/Ground
• Leads - #18 Gauge
• Electrical Protection - Reverse polarity protected
• Operating Life - Over 2,000,000 flashes (300 hours continuous)
• Environment - -22™F (-30™C) to 140™F (60™C)
• Base - High-impact black ABS
• Lens - High-impact resistant acrylic
