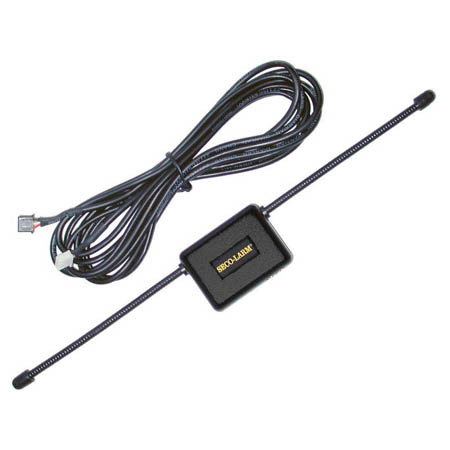

SK-91ERSD Seco-Larm Extended Range Antenna - Up to 1000ft.

Features:

• Use SK-91ERSD to extend range up to 1000ft (300m)* for these SECO-LARM RF receivers:
  • SK-910RQ 1-channel receiver,
  • SK-910RA miniature 1-channel receiver,
  • SK-910R2Q 2-channel receiver,
  • SK-910R4Q 4-channel receiver.
• Extend range up to 1000ft (300m)* with existing remote.
• Easily plugs into a connector on the receiver - no extra wiring needed.
• Includes 9-foot cable.
• Power supply: +5VDC, +/- 0.1VDC (supplied by receiver).
• Current consumption: 4.0mA.
• Sensitivity: 0.89mV@-108dBm.
• Frequency: 315MHz.
• Bandwidth: 3.0MHz (-3dB).
• Double-stick mounting tape included.

SK-91ERSD Datasheet
