Features:
- New! 5 Programmable output modes:
4-Second momentary, toggle, latch, validity (receiver outputs for as long as the transmitter button is pressed), 1-second momentary. - New! 2 Independently programmable channels.
- Compatible with all ENFORCER transmitters.
- Use to control garage door opener, house lights, alarm control panel, or other devices via remote control.
- Two Form C dry relay contact (NO/NC/COM) outputs. Rated 10A@24VDC.
- Frequency 315MHz.
- This revolutionary receiver incorporates:
- 1. Hi-Q SELECTIVITY and a CODING IC for rejecting unwanted RF signals.
- 2.HIGHER SENSITIVITY for greater operating distances.
- 3.UNSURPASSED ANTENNA MATCHING CAPABILITIES so the receiver is less affected by how and where mounted.
- 4.GREATER TUNING STABILITY so the receiver's frequency remains unaffected by shock and vibration.
- 2 LEDs (one for each channel) indicate RF reception, learn mode entered, transmitter learned, memory cleared.
- 2 Mode switches (one for each channel) for easy transmitter learning.
- Learns up to 30 transmitters (15 for each receiver channel).
- Screw terminals for simple connection.
- Accepts ENFORCER fixed code or CODEBUMP transmitters.
Be prepared for today's thieves with SECO-LARM's patented CODEBUMP technology. With CODEBUMP, so-called code-grabbers and scanners are rendered obsolete because the RF code changes every time the transmitter button is pressed. In addition, with over 18 quintillion (1.8x1019) codes, the chances of ever repeating a code are virtually non-existent. SECO-LARM's ENFORCER CODEBUMP transmitters and receivers are perfect for controlling garage and gate openers, car and home alarms, plus much more.
Specifications:

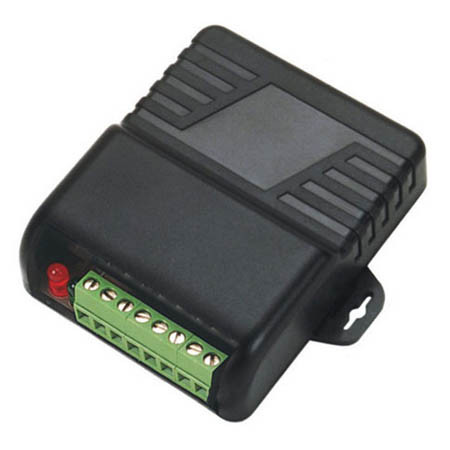

- Model Number - SK-910RB2Q
- Operating Frequency - 315MHz (SK-910R2-4Q 433.92MHz also available by request)
- Operating Voltage - 11~24 VAC/VDC
- Operating Distance - Up to 500' (150m)
- Operating Temperature - -4~162 F (-20~72 C)
- Current Drain
- 8mA@12VDC (standby)
- 60 mA per channel at 12 VDC (activated)
- Sensitivity - -87dBm (typical)
- Data Format - PWM
- Compatible Transmitters - 68 billion codes (SK-919TD1S-UP, SK-919TT1S-BU, SK-919TDWS-BU, SK-919TD2A-UP, SK-919TP4J-NU, SK-919TP1H-BU, SK-919TP2H-NU, SK-919TP4H-NU). 18 Quintillion codes (SK-917T2A-U, SK-917TP4J-NU).
- RF Channels - Two
- Number of Stored Transmitter Codes - 15 per channel, 30 per receiver
- Receiver Outputs - Two Form "C" dry relay contacts (N.O./N.C./COM); 10A@24VDC
- Output Modes - 4-Second momentary, toggle, latch, validity, 1-second momentary
- Connectors - 8 Quick-connect screw terminals (+, -, with NO/NC/COM for channel 1 and NO/NC/COM for channel 2)
- Case Construction - High-impact ABS plastic
- Size - 31/4"x33/8"x11/8" (83x85x28 mm)
- Weight - 4.1-oz (116g)
- Approvals - FCC
