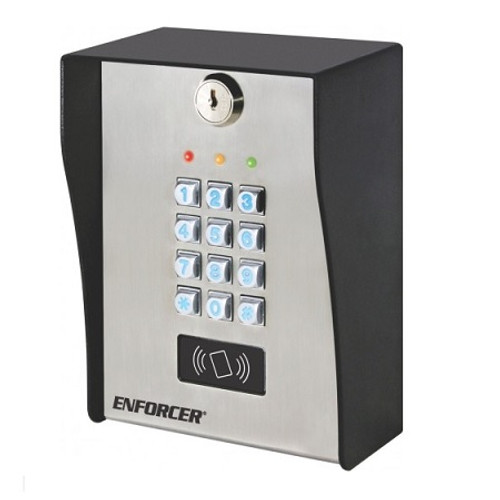

SK-3133-PPQ Seco-Larm Heavy-Duty Outdoor Access Control Keypad with Proximity Reader

Features:

• Built-in proximity reader. 125kHz (EM125)
• 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code
• Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours) or toggle
• Super user code gives admin access to keypad
• Up to 50 possible temporary visitor codes, programmable for one-time or limited-time use (1~99 hours)
• Programmable egress input with optional warning alarm and delayed egress
• Real-time clock to auto-disable access at specific times
• Duress code signals a silent alarm if an authorized user is forced to open the door under duress

Specifications

• Operating voltage - 12~24 VAC/VDC (auto-adjusting)
• Current draw (at 12VDC)
  • Standby - 55mA
  • Keypress - 90mA
  • Total max. current draw - 220mA
• Outputs
  • #1 – Form C - 5A@24VDC
  • #2,#3 – Form C - 1A@24VDC
• Inputs
  • Egress - N.O. Ground
  • Door sensor - N.C. Ground
  • Door inhibit - N.O. Ground
• Proximity reader frequency - 125kHz (EM125)
• Proximity reader sensing distance - 1 1/2 " (38mm)
• IP Rating - IP66
• Operating humidity - 5~95% Non-condensing
• Operating temperature - -4°~158° F (-20°~70° C)
• Material
  • Faceplate - 1 1/16" (1.5mm) Stainless steel
  • Housing - 5/64" (2mm) Anodized steel, powder paint
• Dimensions - 5 1/4" x 7 1/16"x 3 3/8" (133x180x85 mm)
• Weight - 3-lb 12-oz (1.7kg)
