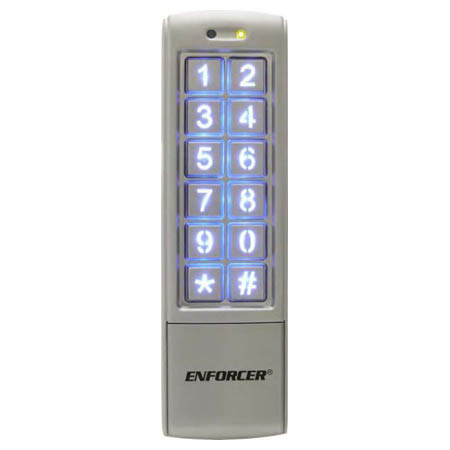

SK-2323-SDQ Seco-Larm Mullion-Style Outdoor Digital Access Keypad

Features:

• 12~24 VAC/VDC operation.
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
• 2 Form C relays, each rated 1 Amp @ 30VDC.
• Each relay has programmable output time from 1~99 seconds or toggle.
• Output #2 can be programmed for use with a doorbell.
• 2 Egress inputs and 1 door sensor input.
• Backlit keys for easy nighttime use.
• Two multi-colored status LEDs.
• All features are programmed directly from the keypad; no need for an external programmer.
• EEPROM memory protects programmed information in case of power loss.
• Optical tamper sensor for added security.
• Circuitry is potted with epoxy for outdoor use.
• IP65 weatherproof rating, rugged aluminum construction.

Specifications:

• Type - Mullion-Style Weatherproof Digital Access Keypads
• Number of user codes - Up to 1,010
• Operating voltage - 12~24 VAC/VDC
• Current drain
  • Standby: 40mA@12VDC
  • Active: 70mA@12VDC
• Relay outputs (2) - 1A@30VDC, Form C, NO/COM/NC
• Egress inputs - 2, N.O. Ground
• Door sensor input - N.C. Ground
• Tamper sensor - Optical
• Operating temperature - -4°~122° F (-20°~50° C)
• Keypad LED life - 60,000 hours (over 6.8 years)
• Weight - SK-2323 Series: 11-oz (312g)
• Proximity reader frequency - (SK-2323-SPQ only) 125kHz
• Proximity reader distance - (SK-2323-SPQ only) 1-15/16" (50mm)
• Dimensions - 6"x1-3/4"x15/16" (152x44x24 mm)
