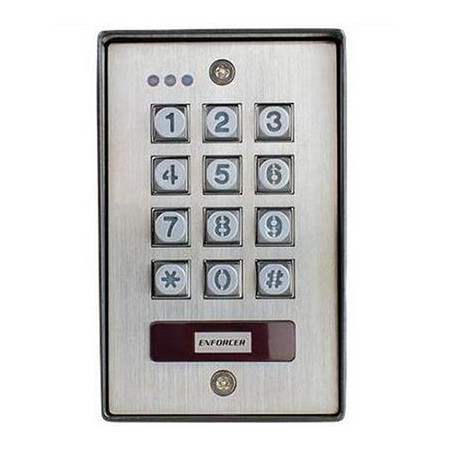

SK-1123-SPQ Seco-Larm Surface-Mount Outdoor Illuminated Stand-Alone Keypad with proximity reader

Features:

• Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Super user code gives admin access to keypad
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
• Programmable egress input with optional warning alarm and delayed egress
• Real-time clock to auto-disable access at specific times
• Up to 50 (01~50) duress codes for output #1 and 10 (01~10) for output #2
• Duress code signals a silent alarm if an authorized user is forced to open the door under duress
• 12~24 VDC/VAC Auto-adjusting operation

Specifications

Access - Keypad

• Type - Vandal-Resistant Outdoor Digital Access Keypad with Built-in Prox Reader
• Operating Voltage - 12~24 VDC/VAC
• Current Draw- Standby - 66mA@12VDC
• Current Draw- Keypress - 160mA@12VDC
• Current Draw- 1 Relay Active - 99mA@12VDC
• Current Draw- 1 & 2 Relays Active - 126mA@12VDC
• Current Draw- Total Max - 160mA@12VDC
• Relay Output- #1 - 1A@30VDC, Form C
• Relay Output- #2 - 1A@30VDC, Form C
• Relay Output- Key Active - 100mA@24VDC
• Relay Output- Duress - 100mA@24VDC
• Relay Output- Interlock - 100mA@24VDC
• Relay Output- Tamper - 50mA@24VDC
• Egress Inputs - N.O. Ground
• Door Inhibit Input - N.O. Ground
• Door Sensor Input - N.O. Ground
• Operating Temperature - -4°~158° F (-20°~70° C)
• Operating Humidity - 5~95% Non-condensing
• Weight - 1-lb, 2-oz (520g)
• Dimensions - 4-15/16”x3-1/8”x2-1/16” (125x79x52 mm)
• Proximity Reader Frequency - 125kHz (EM125)
• Proximity Reader Distance - 1-1/2” (38mm)
