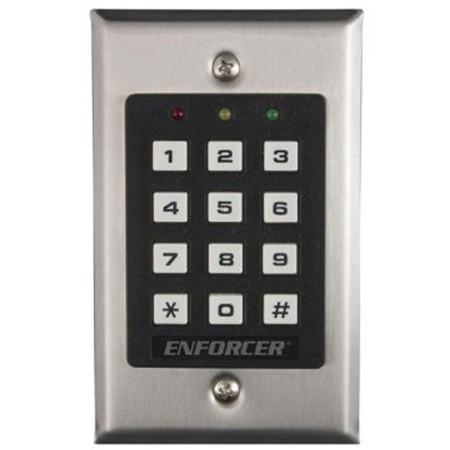

SK-1011-SDQ Seco-Larm Indoor Stand-Alone Keypad with 1000 Users and one 3A Relay Output

Features:

• Up to 1,000 possible user codes (4-8 digits)
• Output: Form C relay, 1A@30VDC max.
• Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours)
• Durable and attractive stainless-steel faceplate
• Programmable delayed egress input lets users exit the premises without keying in the code
• EEPROM Memory protects programmed information in case of power loss
• 12~24 VDC/VAC Auto-adjusting operation

Specifications

• Operating voltage - 12~24 VDC/VAC
• Current draw (at 12VDC)
  • Standby - 15mA
  • Keypress - 30mA
  • Output 1 active - 55mA
  • Total max current draw - 90mA
• Output
  • #1 – Form C - 1A@30VDC
  • Tamper - 50mA@24VDC
• Egress input - N.O. Ground
• Operating temperature - -4°~158° F (-20°~70° C)
• Operating humidity - 5~95% Non-condensing
• Dimensions (including back box) - 45/8”x27/8”x11/2” (117x73x38 mm)
• Weight - 6-oz (170g)

SK-1011-SDQ Datasheet
