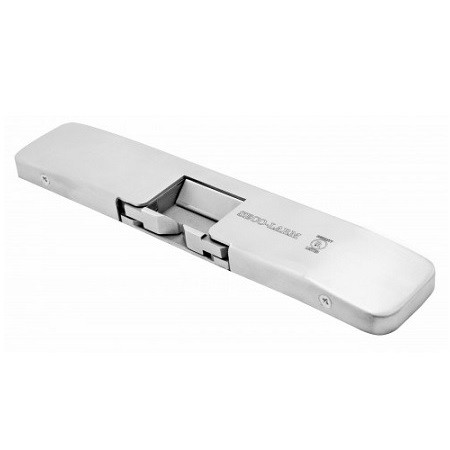

SD-998C-D3AQ Seco-Larm 1/2" Tamper-Resistant Electric Rim Strike

Features:

• UL 294 & UL 1034 Listed
• Tamper-resistant
• 12/24 VDC Operating voltage
• Non-polarized connection
• Horizontal adjustment
• Accommodates up to 3/4" Pullman latch
• Reversible non-handed design
• Stainless steel construction

The SECO-LARM Surface-Mount Electric Rim Strikes are designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (3/4" throw for the SD-998C-D3Q, 1/2" throw for the SD-998C-D3AQ). The strikes feature 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

Specifications

• Operating Voltage - 12/24 VDC
• Current Draw - 540mA@12VDC, 270mA@24VDC
• Maximum Latch Throw - 1/2" (13mm)
• Static Strength - 1,500-lb (6673N)
• Dynamic Strength - 70ft-lb (95J)
• Endurance - 250,000 cycles (UL Tested), Level IV
• Destructive Attack - Level I
• Line Security - Level I
• Standby Power - Level I
• Operating Temperature - 14°~120° F (-10°~49° C)
• Operating Humidity - 0~85%
• Dimensions - 9"x1-3/4"x1/2" (229x45x13 mm)
