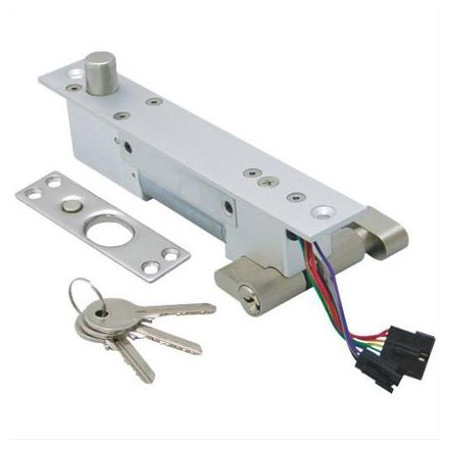

SD-997A-GBQ Seco-Larm Electric Deadbolt for Secure Access Control

Features:

• Adds concealed deadbolt security to most wood or hollow metal doors, with the convenience of electrical operation.
• Incorporates manual lock/unlock cylinder to operate the SD-997A-GBQ if power is lost (turn lock knob from inside protected premises and/or use key from outside protected premises).
• Stainless steel bolt, 5/8" diameter, 5/8" throw.
• Fail-secure operation (locks if power is lost).
• Magnetic switch senses door position for positive locking.
• Includes control wire which allows for releasing without cutting unit's power.
• Attempts to relock multiple times if the door is not closed properly to prevent the solenoid from burning out. Once door closed properly will automatically lock.
• Over-current protection 1.5A.

SECO-LARM Electric Deadbolts are designed for hollow metal door frames. They are not recommended for wooden door frames. However, the door can be wood or metal.

Specifications

• Operation - Fail-secure
• Current Draw- Standby - 330mA@12VDC / 205mA@24VDC
• Current Draw- Active - 880mA@12VDC / 470mA@24VDC
• Status Sensor - SPDT, 250mA @ 12VDC (NO/NC/COM)
• Operating Voltage - 12/24 VDC
• Adjustable Delay Timer - 0, 3, 5, 9 seconds
• Weight - 2-lb 5-oz (1kg)
