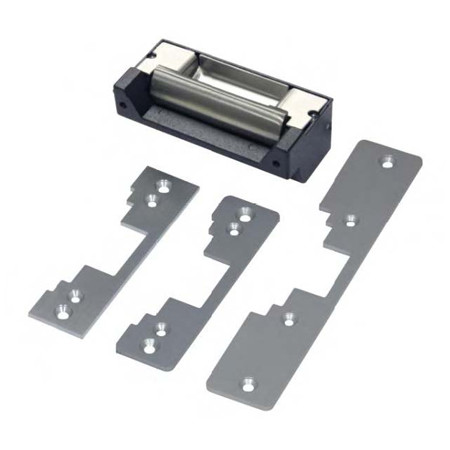

SD-996C-NUQ Seco-Larm Fail-Secure or Fail-Safe Electric Door Strike for Metal and Wood Doors 12/24VDC

Features:

• UL 1034 Burglary.
• Field-programmable in just seconds for fail-secure or fail-safe applications.
• The ENFORCER Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system.
• Can be used on virtually any cylindrical door locking system.
• Use of an optional digital keypad with the unit assures high security without the need for a key.
• Easily connects to SECO-LARM's SK-983A Electronic Keypad.
• Suitable for office-type applications.

Specifications:

• Aluminum Frame - 47/8” x 11/4” (124mm x 32mm)
• Hollow Metal Frame - 47/8” x 11/4” (124mm x 32mm)
• Wood Frame - 715/16” x 17/16” (202mm x 37mm)
• Operating voltage - 12 or 24 VDC ±15%
• Current draw
  • 12VDC: 280mA @ 12VDC
  • 24VDC: 140mA @ 24VDC
• Operating temp - 14° ~ 113° F (-10° ~ 45° C)
• Operating humidity - 85% ±15%
