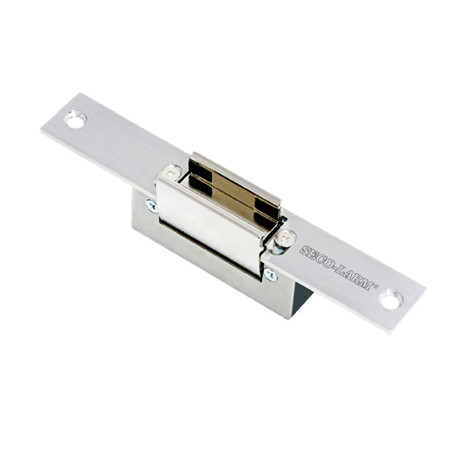

SD-996B-D3Q Seco-Larm Electric Glass Door Strikes Fail-safe 12/24VDC

Features:

• Easy installation on top or side of door
• Reversible, non-handed design
• Horizontal faceplate adjustment to help overcome misalignment
• Suitable for office-type applications
• Available in fail-secure or fail-safe
• Non-polarized connection
• For use on 3/8" (10mm) or 1/2" (12mm) thick frameless glass doors
• Combine with an optional digital keypad

The SECO-LARM Electric Glass Door Strikes can be installed on frameless glass doors to provide electronic access-controlled locking system. The strikes can be used on 3/8" (10mm) or 1/2" (12mm) glass doors, are non-handed, and are available in either fail-safe or fail-secure models

Specifications

• Operating Voltage - 12 or 24 VDC
• Current Draw - 300mA@12VDC, 150mA@24VDC
• Lock Mode - Fail-safe
• Latch Throw - 3/16" (5mm) Max., 1/16" (2mm) Min.
• Operating Temperature - 14°~120° F (-10°~49° C)
• Operating Humidity - 0~85% Non-condensing
• Dimensions - 1"x6-5/16"x1-3/16" (25x160x30 mm)

SD-996B-D3Q Datasheet
