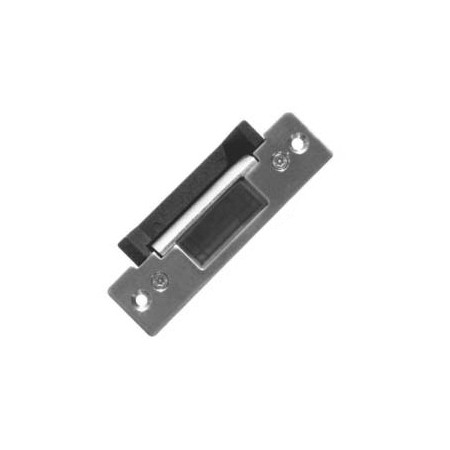

SD-995C24 Seco-Larm Fail-Secure or Fail-Safe Electric Door Strike for Metal Doors 24VDC

Features:

• Field-programmable in just seconds for fail-secure or fail-safe applications.
• The ENFORCER Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system.
• Can be used on virtually any cylindrical door locking system.
• Use of an optional digital keypad with the unit assures high security without the need for a key.
• Easily connects to SECO-LARM's SK-983A Electronic Keypad.
• Suitable for office-type applications.
• ANSI-sized - 4-7/8"x1-1/4"x1-1/4" (124x32x32 mm)
• Symmetrical-sized. Reversible for right-hand or left-hand doors.
• Shallow design for use with most metal doors.
• Powered by a solenoid, not a buzzer coil.
• Jaw strength 2,000 pounds.
• Stainless steel lip (keeper) for strength and long life.
• Non-polarized connection. Wires can be reversed.
• SD-995C: Current draw 250mA@12VDC.
• SD-995C24: Current draw 150mA@24VDC.
• Tested to 1 million cycles.
• CE approved.

SD-995C24 Spec Sheet

SD-995C24 Manual
