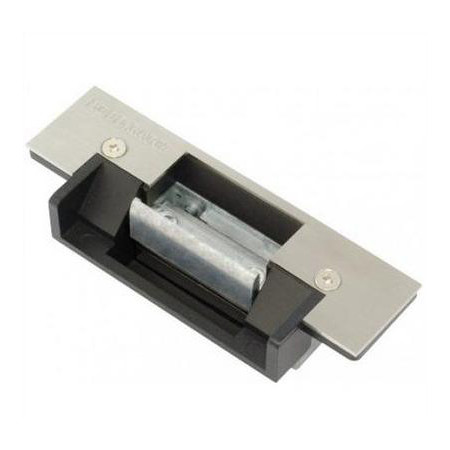

SD-995A-A1Q Seco-Larm Electric Door Strike with Horizontal Adjustment

Features:

• Unique design accommodates both wood and metal doors
• Fail-secure operation
• Reversible for right or left-handed doors
• Durable stainless-steel faceplate
• Miniature lock body for easier installation
• Corrosion-resistant case and moving parts
• Complete mounting hardware included
• Screw terminals for ease of wiring

Specifications

Access - Door Strike

• Operation - Fail-secure
• Operating Voltage - 8~16 VAC/12VDC
• Current Draw - 800mA@16VAC, 750mA@12VDC
• Jaw Strength - 1,000-lb
• Latch Throw - 5/8" (16mm)
• Design - Reversible Non-Handed
• Strike Depth - 1-1/2" overall (38mm)
• Adjustable Keeper - Max. 1/4" (6mm)
• Operating Temperature - 14°F~113°F (-10°~45° C)
• Dimensions - 4-7/8"x1-1/4"x1/8" (124x32x3.2 mm) (Faceplate)
• Weight - 10.3-oz (292g)

SD-995A-A1Q Datasheet
