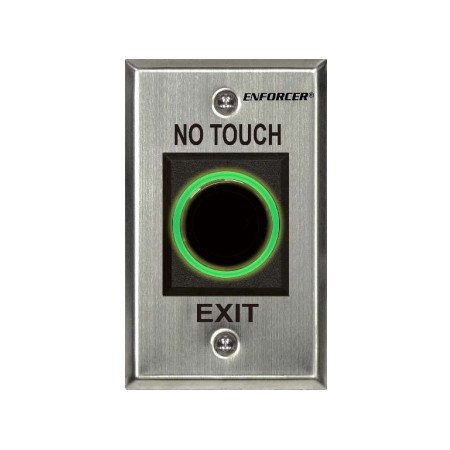

SD-927PKC-NEQ Seco-Larm No Touch Single-Gang Indoor Sensor - Stainless Steel

Features:

• No Touch - just wave a hand in front of sensor
• Sensing range up to 4" (10cm)
• Reliable IR technology senses motion
• No touch reduces the risk of cross-contamination
• Stainless steel or white plastic single gang plate
• 3A relay, triggers min. 0.5 sec. or as long as hand is near the sensor
• LED illuminated sensor area for easy identification
• LED changes color to show the relay is triggered
• Quick-connect screwless terminal block

The ENFORCER "No Touch" Request-To-Exit Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

Specifications

• Operating Votlage - 12 VDC
• Power consumption - 40mA @ 12VDC
• Relay type - Form "C" NO/NC/COM
• Switching capacity - 3A @ 24VDC
• Response time - 10ms
• LEDs - Green to red or red to green
• Output time - 0.5sec or as long as sensor is triggered
• Range - 4" (10cm)
• Operating temperature - -4°~131° F (-20°~55° C)
