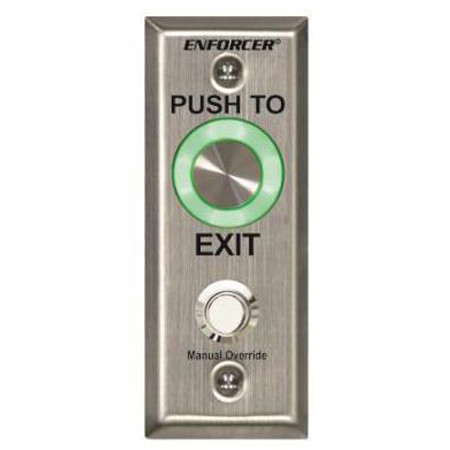

SD-6176-SSVQ Seco-Larm Piezoelectric Pushbutton Vandal-Resistant Slim Line Plate - "PUSH TO EXIT"
(No reviews yet)
Write a Review
Write a Review
Seco-Larm
SD-6176-SSVQ Seco-Larm Piezoelectric Pushbutton Vandal-Resistant Slim Line Plate - "PUSH TO EXIT"
$70.00
- Brand
- Seco-Larm
- SKU:
- SD-6176-SSVQ
Features:
- Piezoelectric request-to-exit plates for indoor or outdoor use IP65)
- No moving parts for heavy duty use
- LED ring around button changes from green to red or red to green when the button is pressed
- Timed or toggle output
- SD-6176-SSVQ and SD-6276-SSVQ include separate manual override button for use in case of a power failure to the request to exit plate
- Relay rated 2A@30VDC with two individually programmable outputs (NO/NC)
Specifications
- Operating voltage - 12~24 VDC
- Current drain - 100mA@12VDC
- Contact rating - 2A@30VDC or 0.5A@125VAC
- Ring LED Default
- Standby - Red
- Active - Green
- Output time - 1~30 s, Toggle
- IP rating - IP65
- Operating temperature - 32°~158° F (0°~70° C)
- Plate material - Stainless steel
- Weight
- Single-Gang - 3.5-oz (99g)
- Single-Gang w/Manual Override - 4-oz (113g)
- Slimline - 2.6-oz (74g)
- Slimline w/Manual Override - 3.1-oz (88g)
