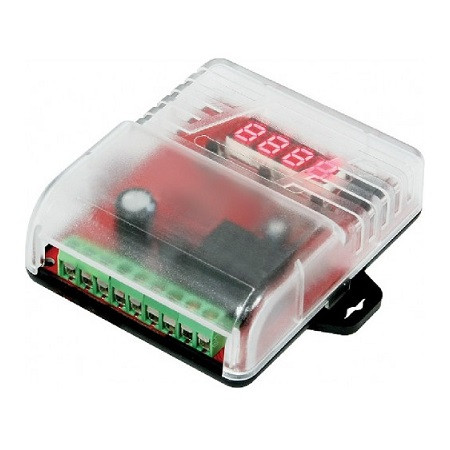

SA-025MQ Seco-Larm Multi-Function Timer / Counter

Features:

• 12~24VDC (auto-sensing) operation
• Low current draw
• 7 modes easily programmable with pushbuttons and LED display (auto door or gate closure, guard timer, pulse extender / false trigger avoidance, timed relay output, timed pulse relay output, input counter, input timer)
• Timer can be set to trigger a notification (red LED and/or buzzer) and/or a Form C relay output (10A@24VDC)
• Timer can be set from 1sec~11h 59min
• Can be triggered by N.O. pos. (+) or N.C. neg. (–) input, or by powering up the unit
• Relay can be programmed to trigger at the start or end of the timing cycle, or to toggle
• Relay can be programmed to pulse (0.5sec on / 0.5sec off) or steady on (1sec~11h 59min)

The Enforcer SA-025MQ Multi-Function Programmable Timer saves time with 7 programmable modes for a variety of common situations. Settings are easily programmed using three pushbuttons and an LED display.

Specifications

• Operating voltage - 12~24VDC
• Current draw
  • Standby - 20~40mA@12/24VDC
  • Active - 65~100mA@12/24VDC (relay and buzzer activated)
• Inputs
  • Trigger - N.O. positive (+) or N.C. negative (–)
  • Reset - N.O. negative (–)
• Output - 10@24VDC NO/NC/COM Dry Form C relay
• Audio /Visual Indicators
  • Display - For programming and status
  • Red LED - Relay output indicator
  • Buzzer - For programming and warning
• Operating temperature - -40°~158° F (-40°~70° C)
• Dimensions - 2 11/16" x 1 1/8"x3 1/4" (68 x 28 x 83 mm)
• Weight - 2.8-oz (79.2g)
