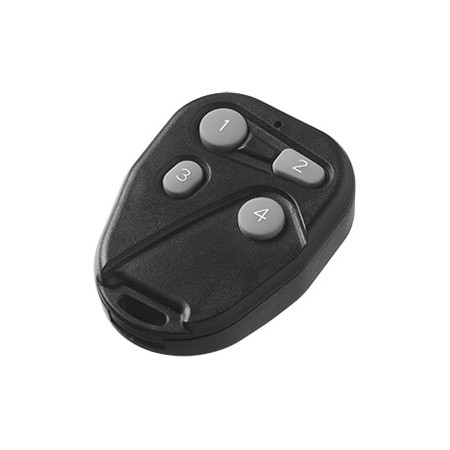

P84WLS Kantech ioProx Transmitter, 4-Button, Compatible with P700WLS - MIN QTY 10

Features:

• Compatible with dual-encoded 26-bit Wiegand and Kantech Extended Secure Format (XSF) proximity cards
• Digital Signal Processing (DSP) ensures quick and reliable card reading
• Readers have weatherproof, vandal-resistant design for indoor and outdoor applications
• Some readers offer two-factor verification (PIN plus card)
• Bicolor reader LED and piezoelectric buzzer
• Cards are dual encoded with 26-bit Wiegand and XSF
• High security XSF offers over 4 billion unique code combinations
• Some cards are suitable for dye sublimation printing for photo ID badges

ioProx readers easily meet the demands of any application. They are a secure and easy-to-install solution to manage and control access all the while ensuring the safety of people and property. Attractive, compact, weatherized, and vandal-resistant, these readers are suitable for installation in a variety of environments. Compatible with dual-encoded 26-bit Wiegand and Kantech Extended Secure Format (XSF) proximity cards, these readers seamlessly integrate with access control systems including Kantech door controllers, Kantech Telephone Entry System (KTES) and EntraPass software.
ioProx cards and tags feature proven, reliable technology that seamlessly integrates with ioProx readers. Cards are available in a variety of shapes/ materials and can be attached to a key ring, badge clip or lanyard. Disk shaped prox tags are also available and can be attached to any non-metallic surface. ioProx cards are dual encoded with both 26-bit Wiegand and XSF and are compatible with ioProx readers.

Specifications

ioProx Receiver

• Power - 12-24 VDC
• Operating Temperature - -30°C to 68°C (-22°F to 155°F)
• Dimensions (H x W x D) - 19.2 x 13.0 x 4.1 cm (7.56 x 5.13 x 1.63 in)
• Enclosure Material - Polycarbonate (HB) with UV stabilizer, weather-resistant, IP56, NEMA 4X rated
• Frequency - 433.92 MHz
• Current - 50 mA (stand-by), 100 mA (peak)
• Output - XSF or 26-bit Wiegand selectable
• Cable Type - 2 twisted pairs, unshielded cable
• Max. Distance from Controller at 12 VDC
  • 152 m (500 ft) with 18 AWG
  • 112 m (369 ft) with 20 AWG
  • 76 m (248 ft) with 22 AWG

2- and 4-button ioProx Transmitters

• Power - 3V lithium battery, included (3 year average lifetime)
• Operating Temperature - 0°C to 70°C (32°F to 158°F)
• Dimensions (H x W x D) - 5.6 x 4.0 x 1.6 cm (2.2 x 1.6 x 0.63 in)
• Certification - FCC

Standard Whip Antenna

• Read Range - Up to 30 m (100 ft)

Power Dipole Antenna

• Read Range - Up to 45 m (150 ft)
