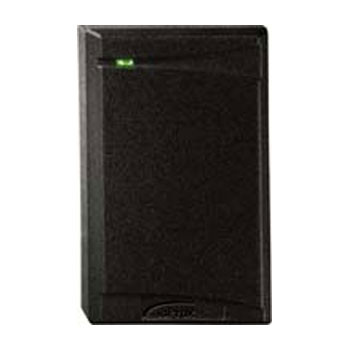

P325XSF Kantech ioProx Reader XSF Format Single Gang Size

Features:

• Choose from Kantech eXtended Secure Format (XSF) or 26-bit Wiegand format
• Digital Signal Processing (DSP) for enhanced security
• Weatherproof design for indoor and outdoor applications
• Integrated piezo buzzer & bicolor LED
• Use the keypad’s * and # buttons in conjunction with the EntraPass software to arm and disarm external alarm panels

Choose from five ioProx readers that easily meet the demands of any application. The readers are attractive, compact, weatherized, and vandal-resistant, making them suitable for installation in a variety of environments.

Specifications:

• Model Number - P325XSF
• Typical Read Range - Up to 20.5 cm (8 in)
• Input Voltage - 4.5 to 14 VDC
• Current DC Maximum - 45 mA
• Dimensions (H x W x D) - 115.6 x 71.1 x 21.3 cm (4.55 x 2.80 x 0.84 in)
• Weight - 150 g (5.3 oz)
• Format - XSF or 26-bit Wiegand
• Maximum Distance From Controller - 5VDC Reader: 150 m (500 ft). 12VDC Reader: 300 m (1000 ft).
• Cable Type - #22 AWG Belden ref #8742 3 twisted pairs, unshielded
• Tamper Switch - Optional P-TAMP
• High Endurance Braille Keypad - P325KP only
• Color - Black
• Transmit Frequency - 125 kHz
• LED Indicator - Bicolor (Red, Green)
• Piezo Buzzer - Integrated
• Operating Temperature - -35°C to 65°C (-30°F to 150°F)
• Certifications - FCC Part 15 Class B, CE, UL
• Environmental - RoHS, WEEE

P325XSF Datasheet
