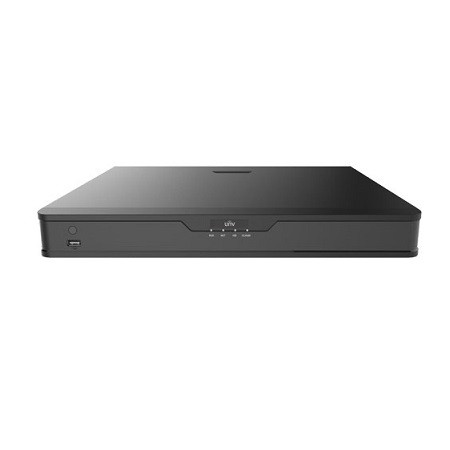

NVR302-08S2-P8-6TB Uniview 8 Channel NVR 160Mbps Max Throughput - 6TB with Built-in 8 Port PoE

Features:

• Supports Ultra265/H.265/H.264 video formats
• 8 channel input
• Plug & Play with 8 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Supports HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• 6TB Storage
• Complies with Section 889 of the NDAA

Specifications

Video/Audio Input

• IP Video Input - 8-ch
• Two-way Audio Input - 1-ch, RCA

Network

• Incoming Bandwidth - 160Mbps
• Outgoing Bandwidth - 64Mbps
• Remote Users - 128
• Protocols - P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output - HDMI: 30fps @ 4K (3840x2160), 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768, VGA: 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
• Audio Output - 1-ch, RCA
• Recording Resolution - 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Synchronous Playback - 8-ch
• Corridor Mode Screen - 3/4/5/7/9

Decoding

• Decoding format - Ultra 265/H.265/H.264
• Liveview/Playback - 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability - 2 x 30fps @ 4K, 4 x 30fps @ 4MP, 5 x 30fps @ 3MP, 8 x 30fps @ 1080p

Hard Disk

• SATA - 2 SATA interfaces
• Capacity - up to 10TB for each disk

External Interface

• Network Interface - 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• USB Interface - Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
• Alarm In - 4-ch
• Alarm Out - 1-ch

PoE

• Interface - 8 independent 100Mbps PoE network interfaces
• Max Power - Max 30W for single port, Max 130W in total
• Supported Standard - IEEE 802.3af/at

General

• Power Supply - 100 ~ 240 V AC, Power Consumption: ≤10W(without HDD)
• Working Environment - +14°F ~ +131°F (-10°C ~ + 55°C), Humidity ≤ 90% RH(non-condensing)
• Dimensions(W×D×H) - 15.0" × 12.4" × 2.1" (380mm × 315mm × 53mm)
• Weight (without HDD) - 5.29lb (≤2.6kg)

NVR302-08S2-P8-6TB Datasheet
