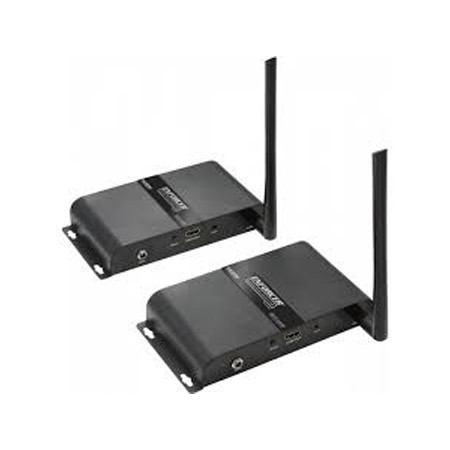

MVE-AH1W1-01NQ Seco-Larm Long-Range Wireless Extender for HDMI

Features:

• Wireless Transmission — Transmits high-definition video and audio wirelessly between the transmitter and receiver.
• Signal Strength — Active operation ensures that the signal strength will remain strong.
• Range — Provides a clear HDMI signal up to 656ft (200m)*.
• Formats Supported — Supports both progressive and interlaced formats: 1080p/1080i/720p/576p/576i/480p/480i.
• Plug and Play — Comes as a complete set with transmitter and receiver, antennas, power supplies, and IR dongles.
• IR Pass-through — Sends IR signals from the HDMI source to the HDMI monitor for discrete operation of devices.

The ENFORCER Long-Range Wireless Extender for HDMI sends high-definition audio and video wirelessly up to 656ft (200m)* for easy installation. The extender also supports IR Pass-through for remotely controlling the HDMI source.

Specifications

• Transmission Frequency - 5.1~5.9 GHz
• Maximum Single Link Range - 1080p/60
• Deep Color - 24-bit
• Audio Formats Supported - LPCM, Dolby-AC3, DTS7.1, DSD
• Video Formats Supported - High-speed HDMI, HDCP 1.2
• Latency - <200ms
• IR Pass-Through - 20~60 kHz
• Range - Up to 656ft (200m)*
• Power Supply - 5VDC/3A (2 adapters) (2.1mm plug)
• Dimensions - 7-11/16" x 5-7/16" x 1-1/4" (195 x 138 x 31 mm)
• Weight - Transmitter: 18.7-oz (531g), Receiver: 18.6-oz (528g)
• Operating Temperature - 32°~140° F (°0~60° C)

MVE-AH1W1-01NQ Datasheet
