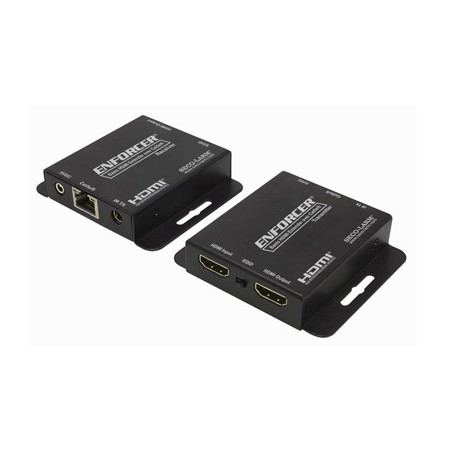

MVE-AH1E1-01NQ Seco-Larm HDMI Extender over Single Cat5e/6

Features:

• Extend HDMI over a single Cat5e/6 cable
• Supports resolutions from 480i to 1080p with zero signal loss
• Transmits up to 164ft (50m) at 1080p over Cat5e/6 cable
• HDMI Loop output for local HDMI display
• Plug and play operation — comes as a complete set
• IR Pass-through for remote control extension and operation
• EDID Management switch
• Two (2) 5VDC power supplies included

Specifications

• Input Video signal - 3.3V
• Input DDC signal - 5Vp-p (TTL)
• Maximum single link range - 1080p
• Deep color - 24bit
• Video formats supported - High-speed HDMI, HDCP 1.2
• Audio formats supported - LPCM, Dolby-AC3, DTS7.1, DSD
• Output video - HDMI
• Resolutions supported - 1080p/1080i/720p/576p/576i/480p/480i
• Range – 1080p - Up to 164' (50m)
• Video amplifier bandwidth - 4.95Gbps
• Video input connector - HDMI Type A 19-pin female
• Maximum input cable length - 24AWG (15m), 26AWG (10m), 28AWG (5m)
• Video output connector - HDMI Type A 19-pin female
• Maximum output cable length - 24AWG (15m), 26AWG (10m), 28AWG (5m)
• Cat5e/6 Wiring standard - T-568B
• IR Pass-through frequency - 30~60 kHz
• Operating voltage - 5VDC
• Power supply - 1A@5VDC (2 Adapters) (2.1mm plug)
• ESD Protection (human body model) - ±8kV (Air-gap discharge), ±4kV (contact discharge)
• Current draw
  • Transmitter - 300mA@5VDC
  • Receiver - 200mA@5VDC
• Operating temperature - 32°~104° F (0°~40° C)
• Operating humidity - 20~90% RH (No condensation)
• Dimensions - 31/8"x11/16"x25/8" (79x17x67 mm)
• Weight - 5.3-oz (150g) (Each)

MVE-AH1E1-01NQ Datasheet
