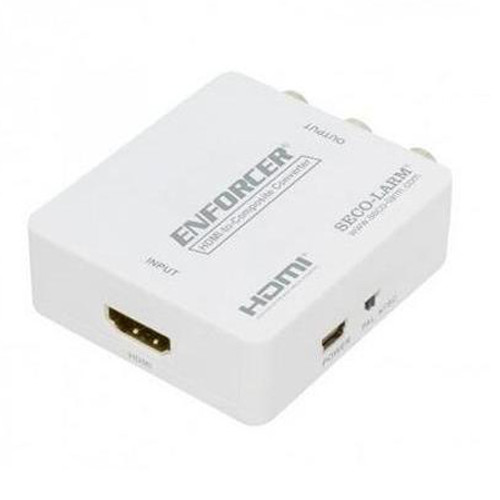

MVA-HT01Q Seco-Larm HDMI-to-Composite Converter

Features:

• Converts HDMI to composite video + stereo audio
• Supports input resolutions up to 1920x1080
• Supports NTSC or PAL output
• Stereo analog audio output
• Plug and play operation

The MVA-HT01Q HDMI-to-Composite Converter allows the user to view video from HDMI devices on analog TVs or projectors without HDMI inputs. Active operation allows the conversion of formats as large as 1920x1080. The MVA-HT01Q also has a L/R analog stereo output allowing the conversion of audio as well.

Specifications

• Input Video Signal - 3.3V
• Video Formats Supported - High-speed HDMI, HDCP 1.2
• Audio Formats Supported - LPCM
• Input DDC Signal - 5V
• Output Video - NTSC/PAL
• Vertical Frequency - 50/60Hz
• Resolutions Supported - 1080p/1080i/720p/576p/576i/480p/480i
• Video Amplifier Bandwidth - 1.65Gpbs
• Video Input Connector - HDMI Type A 19-pin female
• Video Output Connector - RCA female
• Output Audio Connector - RCA female
• Power Supply - 5VDC (USB)
• Operating Temperature - 32°~104° F (0°~40° C)
• Operating Humidity - 20~90% RH (no condensation)
• Dimensions - 2-3/8”x2-1/8”x13/16” (61x54x20mm)
• Weight - 1.4oz (40g)
• ESD Protection - ±8 kV (air-gap discharge), ±4 kV (contact discharge)

MVA-HT01Q Datasheet
