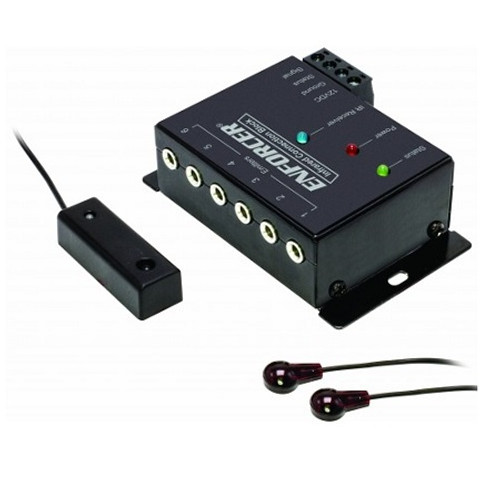

MIR-K16S-2101Q Seco Larm IR Distribution Kit with 6 Ports

Features:

• Compatible with 38kHz and 56kHz IR systems
• Six 1/8 " (3.5mm) IR emitter output jacks
• Kit includes two single IR emitters
• 10ft (3m) C able for IR emitters and receiver
• 12VDC Power jack (AC adapter included)
• Extra Single (MIR - E - 101Q) and Dual (MIR - E - 201Q) Emitters also available
• IR Receiver Adapter can be added to extend signals without complicated wiring (MIR - AS -01Q)

The ENFORCER IR Distribution Kit extends the IR signal from your remote control to remotely operate audio/visual equipment kept in a separate location or in a closed cabinet. The IR Distribution Kit allows for the transmission of IR signals from one IR receiver to up to twelve IR emitters. The wide band IR receiver is capable of receiving IR signals from many types of remotes.

Specifications

• Operating Voltage - 12VDC
• Zone - 1
• Emitter ports - 6
• LEDs - Power (red), Status (green), Receiver (blue)
• IR Receiver frequency - 30~60 kHz
• IR Receiver Distance
• 38 kHz - 40' (12.2m)
• 56kHz - 25' (7.6m)
• IR Emitter frequency - 38/56 kHz
• Connector Type
• Power/status - 2.1mm Coaxial center-pin-positive
• IR Receiver - 1/8 " (3.5mm) TRS Mini - plug/ 4 - pin terminal block
• IR Emitter - 1/8" "(3.5mm) Mono mini-plug
• Maximum extended range - 984' (300m)*
• Operating humidity - 10~90%
• Operating temperature - 32°~158° F (0°~70° C)
• Power supply - 12VDC/200mA
• Dimensions
• Connection block - 2 7/16 "x 1 1 5/16 " x 1 " (62x49x25 mm)
• IR Receiver - 1 3/4 "x 9/16 "x 1/ 2 " (45x15x12 mm)
• IR Emitter - 5/8" x 3/8" 1/4" (16x 10x6 mm)

MIR-K16S-2101Q Datasheet
