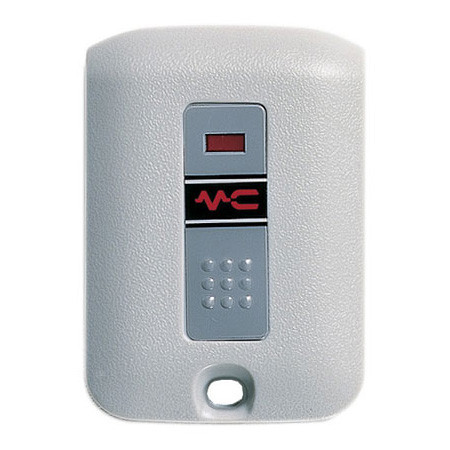

MCS307010 Linear 1-Channel Key Ring Transmitter

Features:

• Model Number: 307010
• Manufacturer Part Number: MCS307010
• Compatible with 300 MHz Multi-Code receivers
• Easy access to battery and coding switches
• Power: 12-volt battery
• Codes: 1,024 (set by dip switches)
• RF frequency: 300 MHz
• Dimensions: 1.5" W x 2.5" H x 0.625" D

The Model 307010 1-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications. This transmitter is a single-channel device, pressing the pushbutton will send a signal to the receiver. The transmitter has a red test/operate indicator and is powered by a 12-volt battery. A molded-in hole in the case is for attaching the transmitter to a key ring.

The transmitter is Multi-Code format with one 10-position coding switch providing 1,024 possible codes. The transmitter will only activate receivers set with the same code. The Model 307010 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.
