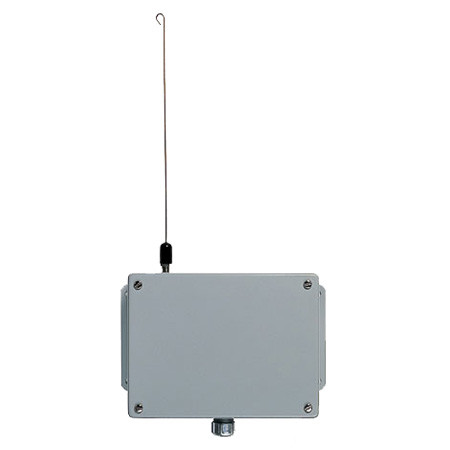

MCS302101 Linear 2-Channel Heavy Duty Gate Receiver

Features:

• Model Number: 302101
• Manufacturer Part Number: MCS302101
• Operates on 24 volts AC or DC power
• Two channels
• Whip antenna
• Codes: 512 (set by dip switches)
• RF frequency: 300 MHz
• Dimensions: 6" W x 8" H x 4" D

The Model 302101 2-Channel Heavy-Duty Gate Receiver is designed for use in gate operator applications. The receiver is housed in a heavy-duty metal cabinet. The cabinet meets NEMA 13 and JIC specifications and features a sealed strain relief bushing for wiring. An 11-inch wire whip antenna is included for local reception. The whip antenna connects to the receiver's Type-F antenna connector. An external Model 106603 Remote Whip Antenna can also be used with this receiver in installations where the receiver is mounted inside a shielded metal enclosure, such as a gate operator housing.

The operator supplies 24 volt AC or DC power to the receiver. The two Form C relay outputs can switch up to 1 amp @ 30 VAC. The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver's output will activate, triggering the gate operator. Transmitter switch #10 selects which receiver channel will activate.

MCS302101 Spec Sheet
