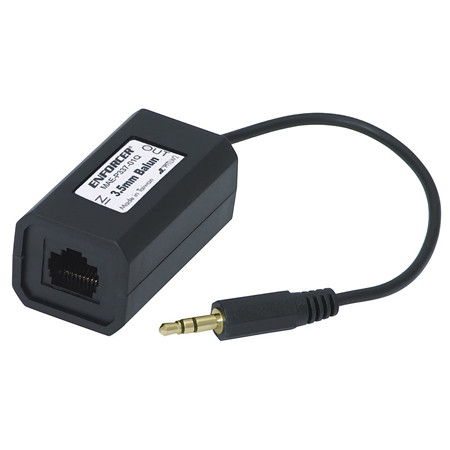

MAE-P337-01Q Seco-Larm Analog Stereo Balun with 3.5mm Plug

Features:

• Transmits a stereo audio signal up to 2,500ft (760m).
• Passive operation - No external power required.
• Uses low-cost Cat5e/66 cable instead of costly audio cables.
• High immunity from interference - Built-in impedance coupled device and noise filter.
• Gold-plated connectors for reliability and longer life.
• Small size for easy installation

The ENFORCER Passive Stereo Baluns are the quick, low-cost way to connect audio devices at greater distances than traditional audio cabling methods. The stereo baluns work in pairs to allow analog audio signals to be transmitted over low-cost Cat5e/6 unshielded twisted pair (UTP) cable.

Specifications:

• Model Number MAE-P337-01Q
• Signal Type Analog
• Maximum Input 1.0Vp-p
• Power No power required
• Wire Type UTP (unshielded twisted pair)
• Wire Category 20-24 AWG @ screwless terminal blocks. Cat2 or better, Cat5 ideal, Cat6 improves range
• Connectors In 3.5mm plug
• Connectors Out RJ-45 jack
• Dimensions 2-1/8”x1-1/8”x1” (54x29x25 mm)
• Max. humidity 95%
• Temperature Range 32° ~ 131° F (0° ~ 55° C)
• Case ABS plastic

MAE-P337-01Q Datasheet
