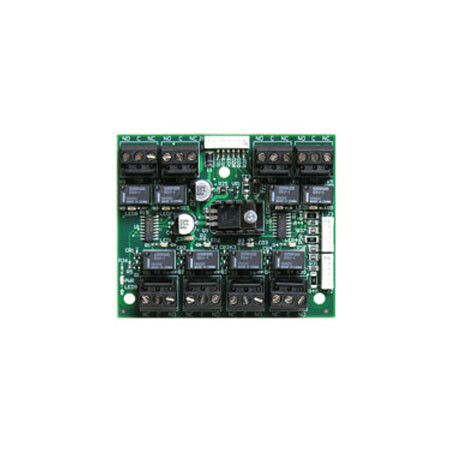

M3-OM Linear Max 3 Output Module

Features:

• Adds 8 Form C Control relay outputs to a Max 3 Module
• Includes power LED and individual relay status LEDs
• Ability to specify a custom name and timer value for each of the 8 outputs
• Convenient "stackable" mounting to the Max 3 module
• Securely installs in Max 3 and MiniMax 3 cabinet
• Primary and back-up power from Max 3 or MiniMax 3 system
• Plug and play design

The Max 3 Output Module (M3-OM) adds 8 form C control relay outputs to a Max 3 Module. The module enables Secured Series customers to handle a greater number of applications such as elevator control, handicapped door control, and controlling or triggering a camera or DVR upon a card read or PIN code. Version 8.0 or higher of Hub Manager Professional Software is required for the Output Module. The Output Module is compatible with the Max 3 v2 or higher controller.
