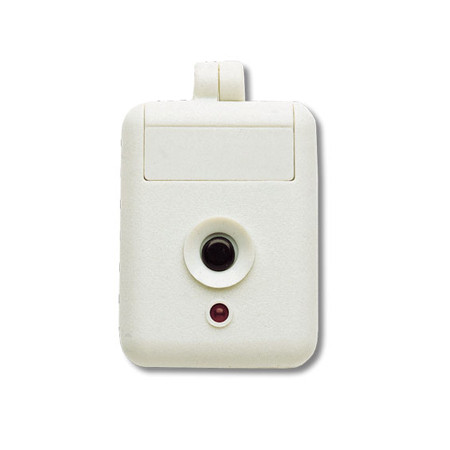

LMT-1-303 Linear Miniature Transmitter

Features:

• Famous "Panic Button" design
• Adjustable lanyard with breakaway release
• Test/operate LED
• Type GP-23 12-volt alkaline battery supplied
• Megacode format
• RF frequency: 303.875 MHz
• 1.42" W x 2.2" H x 0.66" D

The Model LMT-1/303 Miniature Transmitter is a battery powered, portable, miniature pendant transmitter designed for use with Linear™s MegaCode Format receivers. The transmitter can be used in a limitless number of wireless remote control applications. Pressing the button on the transmitter sends a digitally coded wireless signal to its companion receiver.
The LMT-1/303 is a one-button, one-code transmitter. Pressing the button sends the transmitter™s code to the receiver. Press the button for a minimum of two seconds to insure receiver activation. The transmitter button has a positive click feel.
The LMT-1/303 transmitter is powered from a 12-Volt Type GP-23 battery with an expected battery life of about 1 year. The red test/operate indicator lights during operation. When the transmitter does not function, or its range decreases, replace the battery.
The transmitter is supplied with an adjustable lanyard with a breakaway release.

Specifications

• Encoding Technique - MegaCode 24-bit factory rogrammed
• Number of Codes - 1,048,575
• RF Carrier Frequency - 303.875 MHz
• Power - Type GP-23 12-volt alkaline battery (supplied)
• Dimensions - 1.42" W x 2.2" H x 0.66" D

LMT-1-303 Installation Manual
