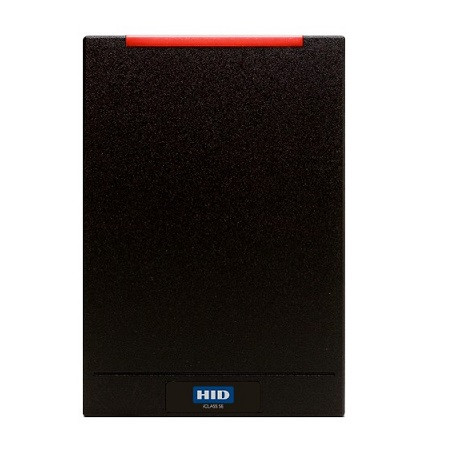

KT-SE-920P-MBLE Kantech HID MultiCLASS Reader RP40 MCLASS SE, Smartcard and HID Proximity BLE Enabled - Black

Features:

• Multi-Layered Security — Ensures data authenticity and privacy through the multilayered security of HID's SIO.
• EAL5+ Certified Secure Element Hardware — Provides tamper-proof protection of keys/cryptographic operations.
• SIO Data Binding — Inhibits data cloning by binding an object to a specific credential.
• Secured communications using OSDP with Secure Channel Protocol.
• Mobile device support using card emulation - Enables HID access control.
• SIO Portability — Provides technology independence and portability to other smart card technologies.
• Upgradeable Hardware Connection — Allows all Wiegand-based communication readers to expand communication capabilities to OSDP, Hi-O and other bidirectional protocols.
• Field Programmable Readers — Provides secure upgrades for migration and extended lifecycle.

HID Global’s iCLASS SE platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions.
multiCLASS SE readers simplify migration from legacy technologies with support 125 kHz for HID Prox, Indala, AWID and EM4102, and provide customers the assurance that their existing investments can be leveraged to enhance their system as business requirements change. The technologyindependent readers also support iCLASS Seos and iCLASS SE credential platforms, as well as standard iCLASS, MIFARE and MIFARE DESFire EV1 with custom data models and other leading technologies.
Additionally, multiCLASS SE readers support mobile devices utilizing Seos, enabling a new class of portable identity credentials that can be securely provisioned and safely embedded into both fixed and mobile devices.
As part of HID Global’s iCLASS SE platform that is based on the Secure Identity Object (SIO)data model and Trusted Identity Platform (TIP™),the powerfully secure multiCLASS SE readers offer advanced features such as layered security beyond the card media and tamper-proof protection of keys/cryptographic operations using EAL5+ secure element hardware.

Specifications

• Typical Read Range1-
  • 13.56 MHz Single Technology ID-1 Cards – SIO Model Data
    • iCLASS Seos: 2.0" (5 cm)
    • iCLASS: 4.7" (12 cm)
    • MIFARE Classic: 4.7" (12 cm)
    • MIFARE DESFire EV1: 2.0" (5 cm)
  • 13.56 MHz Single Technology Tags/Fobs – SIO Data Model
    • iCLASS: 2.4" (6 cm)
    • MIFARE Classic: 2.0" (5 cm)
  • 125 kHz Single Technology ID-1 Cards-
    • HID Prox: 2.8" (7 cm)
    • Indala Prox: 2.0" (5 cm)
    • EM4102 Prox: 4.3" (11 cm)
  • 125 KHz Single Technology Tags/Fobs
    • HID Prox: 2.0" (5 cm)
    • Indala Prox: 1.2" (3 cm)
    • EM4102 Prox: 2.8" (7 cm)
• Mounting- Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing
• Color- Black
• Keypad- No
• Dimensions-
  • 3.3" x 4.8" x 1.0"
  • 8.4 cm x 12.2 cm x 2.4 cm
• Product Weight (Pigtail)- 7.8oz (222g)
• Product Weight (Terminal Strip)- 7.6oz (216g)
• Operating Voltage Range- 5-16 VDC, Linear supply recommended
• Current Draw - Standard Power Mode2 (mA)- 85
• Current Draw - Intelligent Power Management (IPM) Mode2 (mA)- 50
• Peak Current Draw - Standard Power or IPM Mode2 (mA)- 200
• NSC3 Power Consumption - Standard Power Mode (W @ 16VDC)- 1.4
• NSC3 Power Consumption - w/ IPM (W @ 16VDC)- 0.8
• Operating Temperature- -31º to 150º F (-35º to 65º C)
• Storage Temperature- -67º to 185º F (-55º to 85º C)
• Operating Humidity- 5% to 95% relative humidity non-condensing
• Environmental Rating- Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT)
• Transmit Frequency- 13.56 MHz & 125 kHz
• 13.56 MHz Card Compatibility-
  • Secure Identity Object(SIO ) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default)
  • - standard iCLASS Access Control Application (order with Standard interpreter)
  • -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN
  • - MIFARE Classic and MIFARE DESFire EV1 custom data models
  • - FeliCa™4 CSN, CEPAS4 CSN or CAN
• 125 kHz Card Compatibility- HID Prox4, AWID4, Indala, EM41024
• Communications- Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results
• Panel Connection- Pigtail or Terminal Strip
• Certifications- UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea)4, NCC (Taiwan)4, iDA (Singapore)4, RoHS , FIPS-201 Transparent FASC-N Reader
• Cryto Processor Hardware Common Criteria Rating- EAL5+
• Patents- US7180403, US7439862, US7124943, US5952935, US6058481, US6337619
• Housing Material- UL94 Polycarbonate
• Manufactured with % of recycled content (Pigtail)- 10.50%
• Manufactured with % of recycled content (Terminal Strip)- 11.00%
• UL Ref Number- RP40E
• Warranty- Limited Lifetime
