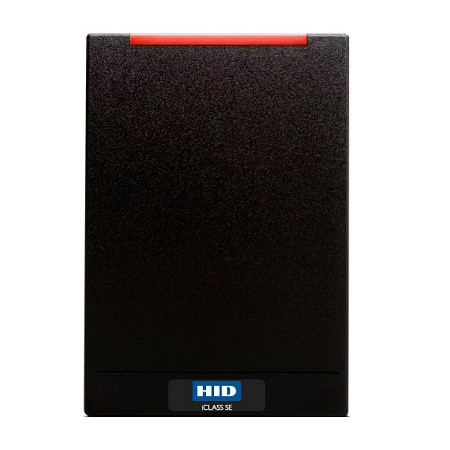

KT-SE-920-001 Kantech HID R40 iClass SE Reader with iCLASS Seos Cards and Mobile IDs via NFC 13.56 MHz and Bluetooth Credential Support Wiegand Controll Communication Pigtail Standard and Mobile-Ready Keyset - Special Order

Features:

• Powerfully SecureM – Provides layered security beyond the card media for added protection to identity data using SIOs.
• Adaptable – Interoperable with a growing range of technologies and form factors including mobile devices utilizing Seos.
• Interoperable – Open Supervised Device Protocol (OSDP) for secure, bidirectional communication.
• Versatile - Extended read range is available for applications such as parking and gate control solutions.

HID Global’s iCLASS SE platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions.

Specifications

• Model - R40
• Base Part Number - 920N
• Typical Read Range1
  • 13.56 MHz Single Technology ID-1 Cards – SIO Data Model - iCLASS Seos: 3.2" (8 cm), iCLASS: 5.2" (13 cm), MIFARE Classic: 3.9" (10 cm), MIFARE DESFire EV1: 3.2" (8 cm)
  • 13.56 MHz Single Technology Tags/Fobs – SIO data Model - iCLASS: 2.8" (7 cm), MIFARE Classic: 2.0" (5 cm)
• Mounting - Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing
• Color - Black
• Keypad - No
• Dimensions - 3.3" x 4.8" x 1.0" 8.4 cm x 12.2 cm x 2.4 cm
• Product Weight (Pigtail) - 7.7 oz (220g)
• Product Weight (Terminal Strip) - 7.5 oz (215g)
• Operating Voltage Range - 5-16 VDC
• Current Draw - Standard Power Mode2 (mA) - 65 @ 16V
• Current Draw - Intelligent Power Management (IPM) Mode2 (mA) - 40 @ 16V
• Peak Current Draw - Standard Power or IPM Mode2 (mA) - 200 @ 16V
• NSC3 Power Consumption - Standard Power Mode - 1.0 @ 16V
• NSC3 Power Consumption - w/ IPM - 0.6 @ 16V
• Operating Temperature - -31º to 150º F (-35º to 65º C)
• Storage Temperature - -67º to 185º F (-55º to 85º C)
• Operating Humidity - 5% to 95% relative humidity non-condensing
• Environmental Rating - Indoor/Outdoor IP55; IP65 if installed with optional gasket
• Transmit Frequency - 13.56 MHz
• 13.56 MHz Card Compatibility - Secure Identity Object (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - MIFARE Classic and MIFARE DESFire EV1 custom data models - standard iCLASS Access Control Application (order with Standard interpreter) - ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - FeliCa™4 CSN, CEPAS4 CSN or CAN
• Communications - Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485
• Panel Connection - Pigtail or Terminal Strip
• Reader Management - HID Reader Manager Mobile App for HID Mobile Access / OSDP infield upgrade, configuration, firmware upgrade and diagnostics
• Certifications - UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan)4
• Cryto Processor Hardware Common Criteria Rating - EAL5+
• Patents - www.hidglobal.com/patents
• Housing Material - UL94 Polycarbonate
• Manufactured with % of recycled content (Pigtail) - 10.5%
• Manufactured with % of recycled content (Terminal Strip) - 11.0%
• UL Ref Number - R40E
• Warranty - Limited Lifetime

KT-SE-920-001 Specifications PDF
