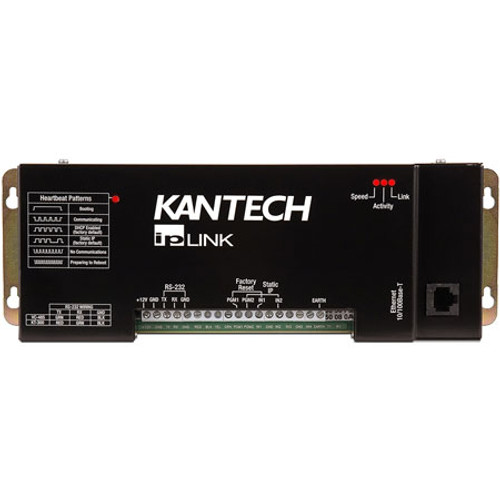

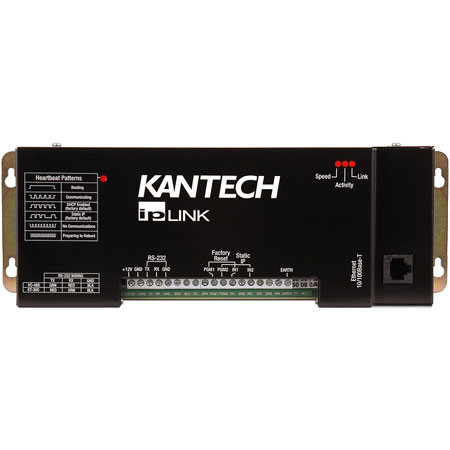

KT-IP Kantech IP Link

Features:

• Powerful solution for connecting KT-100, KT-200 and KT-300 door controllers to existing network infrastructure
• Secure communication via 128-bit AES encryption
• Configured using either a static or dynamic IP address
• Up to 512 IP Links can be supported per EntraPass Gateway, a cost-effective solution to managing multiple remote sites
• Communicates over the network only as required, keeping network traffic down to a minimum
• Plug and play setup makes it quick and easy to use with EntraPass access control software
• Supports up to 32 door controllers per device
• Compatible with EntraPass Special, Corporate and Global Editions (Global Edition with Corporate Gateway only)

The Kantech IP Link makes it easy and affordable to manage your Kantech access control system over a network.

Unlike similar devices, the IP Link manages polling of door controllers and communicates with the EntraPass Gateway only when an event has occurred. Communication integrity is ensured through a heartbeat signal, which is sent at a regular interval to the EntraPass software. This asynchronous communication significantly reduces the amount of bandwidth required to manage your access control system over the network.

The IP Link is easy to set up. Use an EntraPass workstation, a web browser or the KT-Finder, an intuitive standalone application designed to locate and configure the IP Link.

In most installations, EntraPass software automatically detects and configures the IP Link using the MAC address.

The IP Link uses 128-bit AES encryption to communicate with EntraPass, which ensures secure communication when used over the Internet.

The IP Link leverages Kantechs robust portfolio of KT-controllers to offer a powerful security solution for any size application. The EntraPass access control system can control access for one door to thousands of doors and, with the IP Link, can effortlessly communicate over an existing network.

Specifications:

• Model Number - KT-IP
• Weight - 0.6 kg (1.3 lbs)
• Dimensions - 26.7 x 9.5 x 3.12 cm (10.5 x 3.72 x 1.23 in)
• Communication Ports - RJ-45 Ethernet 10/100Base-T and RS-232
• Communication Speed - Up to 115200 baud for serial communication
• Flash ROM - 2 MB
• RAM - 8 MB
• Compatibility - KT-100, KT-200 and KT-300 door controllers
• Maximum Unit - Up to 512 IP Links per Corporate Gateway. Up to 64 IP Links per Special Edition.
• Operating Temperature - 0C to 49C (32F to 122F)
• Humidity - 0 to 85% non-condensing, indoor use only
• DC Power Input - 12 VDC
• Input Current - Max: 175 mA, Typical: 125 mA
• Compliance - FCC Part 15 Class A, EN55022 (CISPR22), EN55024, CE, C-Tick.
• Certifications - UL294
• Environmental - RoHS, WEEE.
