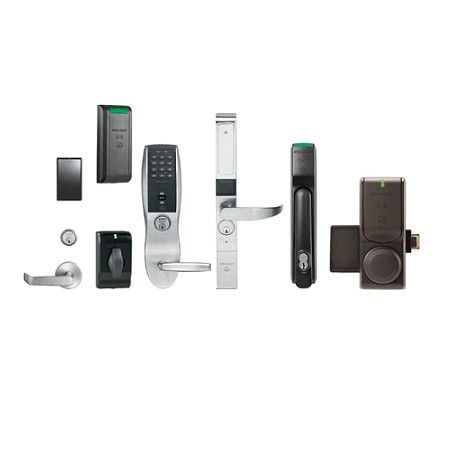

KT-APERIO-102 Kantech IN100-8877-F-IP-B-ET-NJ-32D-RHR Assa Abloy Aperio Lock

Features:

• Real-time communication with Kantech KT-1-PCB and KT-400 door controllers, and EntraPass security management software and control
• Convenient and easy to integrate with new and existing EntraPass installations
• Utilizes low-power IEEE 802.15.4 wireless communication between the Aperio lock and hub
• All access and scheduling decisions made through the powerful Kantech KT-1-PCB and KT-400 controllers
• Real-time reporting such as card access transactions, door status, low battery and tamper alarm monitoring
• Wireless communication protected through 128-bit AES encryption
• Aperio IN100 wireless lock available with Kantech ioProx functionality 1
• Aperio IN100 wireless lock supports all ioProx credentials (P10SHL, P20DYE, P30DMG, P40KEY, P50TAG)

Kantech's EntraPass Security Management Software integrates with ASSA ABLOY Aperio wireless lock technology giving you the flexibility to expand your access control system to almost every opening in your facility. These locks become part of the EntraPass ecosystemand can be managed from the EntraPass interface for a unified security management experience.

Specifications

• Requirements - EntraPass SE, CE and GE (v7.0 or higher), ASSA ABLOY Dealer Certification, VC-485 Communication Interface, License Per Lock

ASSA ABLOY Aperio Support Requirements 5

• Kantech Controller Support - KT-1-PCB and KT-400
• Max # of Aperio Locks
  • Per KT-1-PCB - 8 (v8.10 or higher)
  • Per KT-400 - 8
  • 1 VC-485 required per controller
• Max # of Aperio Hubs per Controller - 8
• Supported Integrations per Controller 6 - 2

Aperio Wireless Hub

• Dimensions (H x W x D) - 82 x 82 x 37 mm (3.25 x 3.25 x 1.5 in)
• Power Supply - 8 - 24V DC
• Power Draw - 250 mA max, minimum 80mA at 12V DC
• Wireless Operating Range - 25 m (depending on the building environment)
• Wireless Transmit Power - 10 dBm/MHz
• Operating Temperature - 5°C to 35°C (41°F to 95°F)
• Humidity - <95% non-condensing
• Aperio Features Supported 7, 8
  • Wireless device tamper in alarm
  • Wireless device offline/online
  • Radio disturbance detected/cleared
  • Battery status low
  • Wireless device door state/lock state/handle state

KT-APERIO-102 Specifications PDF
