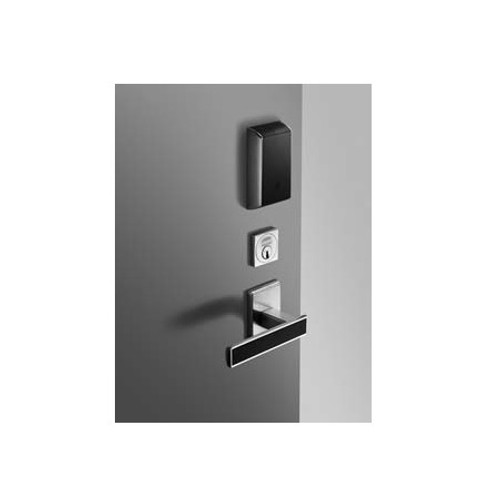

KT-APERIO-007 Kantech ML20135 No Key Override With Deadbolt Polished Chrome Right Hand IP Credentials Black Reader With Metal Trim

Features:

• Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times
• Outside lever rigid except when in "passage" mode or valid user code entered

The IN Series mortise lock has a clean, crisp design and is available with a variety of lever designs and hardware finishes.

Specifications

• Handing - Handed; quick reversibility. The lockset can be re-handed without disassembling the lock body.
• Door Thickness - 1-3/4" (44mm) standard. Optional 2" (50mm) to 2-1/4" (57mm); see Quick Code section.
• Backset - 2-3/4" (70mm)
• Lockcase - Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
• Front - Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm).
• Armored Front - Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.
• Latch - Patented, quick, reversible 2-piece mechanical with anti-friction insert 5/8" (16mm) x 1" (25mm) x 3/4" (19mm). U.S. Patent #6,349,982.
• Auxiliary Latchbolt - 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
• Deadbolt - One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw
• Hub - Steel, 5/16" (8mm).
• Strike - Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center, Optional strikes, lip lengths and ANSI wrought strike box available.
• Cylinder - 1000-118-A01, 6-pin, L4, keyed random, furnished standard for 1-3/4" (44mm) door, Optional cylinders available.
• Keying Features Available - Master keying, Construction master keying, Visual key control, Concealed key control, Interchangeable core (IC), Security, Security IC, Access 3, Access 3 IC, Pyramid, Pyramid IC
• Environmental Specifications - Operating Temperature: -13°F (-25°C) to 151°F (66°C), Operating humidity: 5% to 95% relative humidity noncondensing
• EcoFlex - EcoFlex technology reduces power consumption up to 96% as certified by GreenCircle
• Monitoring - Request to Exit, Door Position (external)
• Warranty - 10-year limited mechanical, 2-year limited electrical.
• Shipping Weight - Approx. 11 lbs.

KT-APERIO-007 Specifications PDF
